XDrive Transfer Case Service Kit

Service your xDrive transfer case with genuine BMW fluid and hardware to ensure peak performance and reliability. If you are approaching the 60,000 mile mark, or well past it and looking to catch up on maintenence, this is exactly what you are looking for.

This kit includes:

• 1 Liter - xDrive transfer case fluid

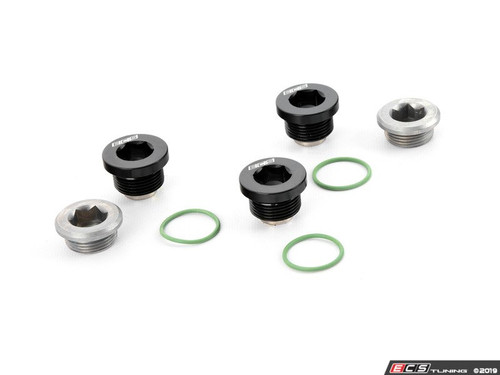

• 1 ECS Magnetic drain plug
• 1 14mm hex fill plug with sealing washer

Service tips:

First, remove your fill plug, followed by the drain plug. Once the fluid has drained completely, install the new drain plug and torque to specification. Using a fluid transfer pump, fill the transfer case until the fluid begins to run freely from the fill hole. Then install the new fill plug and torque to specification. That's it! No filter to change or gaskets to mess with!

Drain and fill plugs require 44 ft/lbs torque when reinstalling.

ECS Tuning recommends servicing your transfer case every 60,000 miles.

Check out the BMW service wrench by Schwaben Tools. The only tool you need to service your differential, transmission, and transfer case.
