Audi TTRS 2.5 TFSI Stage 2+ (HPFP) ECU Upgrade Performance Software

034 Motorsports
(No reviews yet) Write a Review
US$900.00
Audi TTRS 2.5 TFSI Stage 2+ (HPFP) ECU Upgrade Performance Software
MPN:
034-103-2806
SKU:
034-103-2806
Availability:
Contact us for availability
FreeShip:
Yes
  • DYNAMIC END USER FLASHING KIT

Product Overview

034Motorsport is proud to offer our Stage 2+ (HPFP) Performance Software for the 2.5 TFSI engine found in the 8J Audi TTRS!

034Motorsport’s extensive racing experience with the TT RS led to the development of a new line of performance software for the 2.5 TFSI’s Bosch MED 9 ECU, which was initially introduced with the RS500 Tuning Package. 034Motorsport spent a significant amount of time developing and verifying our proprietary software to ensure that our Audi TT RS Performance Software delivers consistent, reliable power under grueling track conditions.

Through optimization of the factory ECU's boost, fueling, and timing maps, the 034Motorsport Stage 2+ Audi TT RS ECU Upgrade brings out the potential of the 2.5 TFSI engine with a High-Flow Downpipe and High-Pressure Fuel Pump (HPFP) Upgrade.

Peak boost ranges from 21-25 PSI (octane dependent) and tapers to 15 PSI by the new 7,100 RPM redline to keep the turbo running at its optimum efficiency. 034Motorsport's Stage 2+ boost mapping makes the most from the increased headroom provided by the HPFP Upgrade, resulting in increased midrange horsepower and torque. This software provides rock-solid performance lap after lap, and is combined with an advanced boost control strategy that allows for increased precision beyond factory limits.

Going beyond power improvements, 034Motorsport’s calibrator also made improvements to the throttle mapping, increased idle stability, and enabled left-foot braking. The end result is a tune that drives better than the factory calibration, with power delivery that is consistent and manageable on the street and track alike.

This tune was developed in-house by 034Motorsport's expert calibrator, and was thoroughly tested on the street, track, and dyno before release.

Peak Horsepower & Torque:

  • Stock: 372 Horsepower / 384 Foot-Pounds of Torque (As Measured by 034Motorsport on 91 Octane)
  • Stage 2+ 91 Octane: 420 Horsepower / 465 Foot-Pounds of Torque
  • Stage 2+ 100 Octane: 450 Horsepower / 505 Foot-Pounds of Torque

Peak Horsepower & Torque Gains Under Curve:

  • 91 Octane: 81 HP @ 4,720 RPM / 95 TQ @ 4,025 RPM
  • 100 Octane: 106 HP @ 4,635 RPM / 143 TQ @ 3,650 RPM
Features:
  • Developed In-House on the Street, Track, and 034Motorsport's Chassis Dyno
  • Requires High-Flow Downpipe and Upgraded High-Pressure Fuel Pump
  • Optimized Boost Timing, and Fueling Maps for Turbocharged Engines for Increased Horsepower & Torque
  • 91, 93, and 100 Octane Maps Available with Map-Switching Using PL34 Hand-Held Flash Loader
  • Increased Rev Limiter to 7,100 RPM
  • Speed Limiter (Governor) Removed
  • Improved Throttle Response & Power Delivery
  • Refined Throttle Mapping for Part Throttle Drive-ability
  • Mirrored Throttle Mapping Between Normal & Sport Mode (No More Touchy On/Off Switch!)
  • Increased Idle Stability (Especially Helpful with Lightweight Flywheels!)
  • More Aggressive Exhaust Flap Control In Sport Mode
  • Left-Foot Braking Enabled
Compatible Vehicles:
Installation:
  • The initial flash is performed directly to your vehicle's ECU by 034Motorsport. Future software updates and map-switching can be performed by you directly through the vehicle's OBD-II port using the PL34 Hand-Held Flash Loader which is sold separately.
Required Hardware:

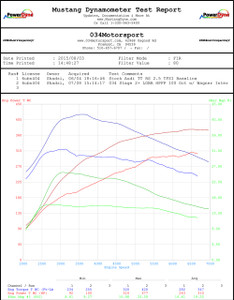

Wheel Horsepower Dyno Plot | 100 Octane | 034Motorsport Stage 2+ (HPFP) for Audi TT RS 2.5 TFSI

034Motorsport Dyno Tuned Audi TT RS Stage 2+ ECU Upgrade with Downpipe & LOBA HPFP Upgrade

Please Note: Not for use on emissions-controlled vehicles in California. This software upgrade is for off-road, track, and racing applications only.
