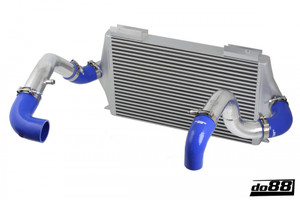

BigPack Volvo 700 900 Turbo 92-98, Blue hoses, 63mm throttle

(No reviews yet) Write a Review
BigPack Volvo 700 900 Turbo 92-98, Blue hoses, 63mm throttle
Contact us for availability

Product Overview

The best Volvo 740 940 Turbo 1992-98 performance intercooler kit on the market!

This BigPack includes both do88 performance intercooler and intercooler pipe kit.

This kit is for you with high horsepower goal and wants to upgrade to the absolute best! ?Only?; changing to our performance intercooler is a Big improvement but together with our pressure pipe kit the improvement is Huge! Our pressure pipes has better airflow than the stock pipes, this we have verified in several tests both in car and in our own SuperFlow SF-1020 flow bench.

Significant advantages with do88 BigPack (OEM intercooler/pipes):
- Core volume: 13945m3 (8465cm3), do88 is 65% larger!
- Air flow at 0,15bar/2,18psi pressure drop: 313CFM (258CFM), do88 21% higher!
See diagram below!
- Post intercooler air temperature at same conditions: 28?C (49?C), do88 21?C lower!
See diagram below!
- Fits all cars in list below!
The OEM intercooler rubber supports in the top brackets needs to be trimmed slightly
because of the increased thickness.
There are no predrilled holes for the AC-condenser, these holes needs to be drilled (easy to do).

BigPack includes a full aluminum performance intercooler and a complete 2,5?; pipe kit and silicone hoses. This BigPack replaces everything between the turbo outlet and the throttle body this why it drastically improves the airflow / cooling performance compared to the original.

do88 performance intercooler are an all-aluminum construction with cad designed, flow optimized cast end tanks and optimized core design to achieve best possible cooling efficiency combined with lowest possible pressure drop!

The pressure pipes are manufactured in 2,5?; mandrel bent aluminum pipes.

Custom made high quality silicone hoses with 4 layers of polyester/aramid reinforcement. These hoses can handle very high temperature and pressure!

Always remember that the OEM intercooler was designed for the power level the car was built for and a power increase or even very hard use of the car in a standard version may cause that the OEM intercooler don?t have the performance you need. So only after engine software tune do88 BigPack will give a performance increase over the OEM intercooler!

do88 BigPack comes with all hardware necessary for installation.

Included parts in this BigPack:

1. Performance intercooler
2. Two 2,5" pressure pipes
3. Four silicone hoses
4. Eight T-bolt hose clamps

When you order this BigPack, there are two choices that needs to me made:

1. Color:
Three different hose colors are avalible Blue / Black / Red. There are no performance difference between the different colors, choose which color you think will be best for your car.

2. Throttle body size:
"63mm Standard" if you have the original throttle body on your car.
"76mm ( 3inch )" if you have switched to a 3 inch throttle body .

Volvo 740
Yeal models: 1992
Engine: B200FT
Only cars with Air Condition
Fits:Volvo 940
Yeal models: 1992-1998
Engine: B200FT B230FT B230GT B230FK B200GT B230GK
Only cars with Air Condition
Volvo 960
Yeal models: 1992-1994
Engine: B204FT B230GT
Only cars with Air Condition

This diagram shows the charge air flow at different pressure drops of do88 BigPack compared to OEM intercooler and pipes*:
