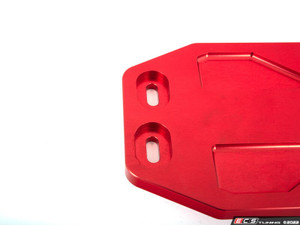

?The ECS Tuning Billet Tunnel Brace for the modern day MQB chassis replaces the thin stamped steel braces installed from the factory. The substantial added thickness and width ensures a more rigid connection to both sides of the tunnel. The chassis brace is CNC machined out of 6061-T6 billet aluminum and beautifully anodized in your choice of gloss red or gloss black to offer both great looks and durability.
PART DESIGN
In-house designed and engineered using FARO ARM laser scanning technology and SolidWorks 3D CAD modeling for precision fitment
Made from a solid block of 6061-T6 aluminum
Features a chunky 13mm thickness for added rigidity
Designed intentionally to aid in larger diameter exhaust clearance
Anodized in your choice of Type II gloss red or gloss black finish

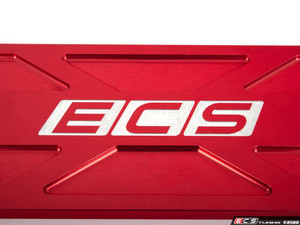

Post-anodized machined ECS Tuning logo
Compatible with factory side belly covers with no trimming required
PERFORMANCE FEATURES
Our tunnel brace is a precision engineered structural component that ensures power is transferred properly and not lost through chassis flex, without any perceivable increase in NVH.
PRODUCT DEVELOPMENT
Our ECS Billet Front Tunnel Brace was designed, engineered, tested and quality inspected by our Research and Development team in our Wadsworth, Ohio facility. We strive for the highest level of precision and quality through leading-edge product development technology including FARO laser scanning for reverse engineering and quality inspection, SolidWorks 3D CAD modeling, rapid prototyping utilizing our in-house 3D printer, and rigorous long term product testing.
INSTALLATION AND SUPPORT

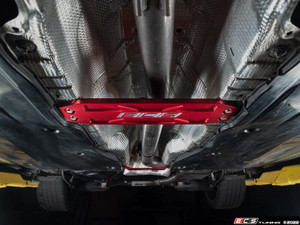

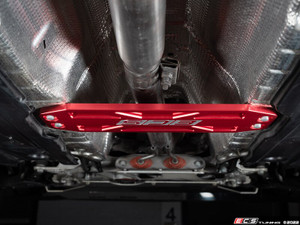

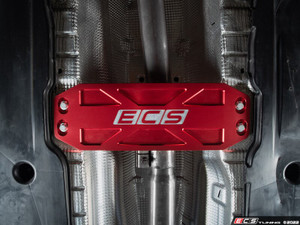

?Installation is simple. The brace mounts into the factory position and re-uses the OEM hardware.
Mounting bolts are reusable. Replacements are available under ES466771. Torque to 20 Nm.
This product is not compatible with our ECS Aluminum Street Shield Tunnel Brace.
