Coil Conversion & ICM Delete Kit, Early 1.8T to 2.0T FSI Coils

The 034Motorsport 2.0T FSI Coil Conversion and ICM Delete Harness for the 1.8T is a plug-in solution to elimate the troublesome factory Ignition Control Module (ICM) and upgrade from the pricey factory coils to more affordable and reliable ones found in the new 2.0T FSI.

This harness kit was developed and continues to be assembled in-house by 034Motorsport, and features proprietary connectors and superb construction.

Please Note: OEM Audi 2.0T FSI Coils (07K 905 715F) are available to offer a complete solution. 1 motor will require 4 coils.

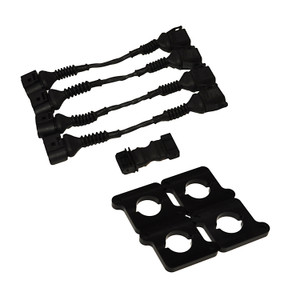

Harness Kit Includes:

• ICM Delete Harness
• FSI Coil Conversion Harnesses (Set of 4)
• Coil Adapter Brackets - 2.0T FSI Coil to 2.7T Valve Cover (Set of 4)
• M6x20 Allen Head Bolts (Set of 8)

Fitment:

• 1997-1999.5 B5 Audi A4 1.8T (AEB Engine Code)
• 1997-1999.5 8L Audi A3 1.8T (AGU Engine Code)



Click here for installation instructions!

<p><span>Tired of swapping ICMs and coils around trying to figure out the source of pesky misfires? Looking for improve idle or want run larger spark plug gaps?</span><br /><br /><span>The 034Motorsport 2.0T FSI Coil Conversion and ICM Delete Harness for the 1.8T is a plug-in solution to eliminate the troublesome factory Ignition Control Modules (ICMs) and upgrade from the pricey factory coils to more affordable and reliable ones found in the new 2.0T FSI.</span></p>
