Density Line Control Arm Kits, B9/B9.5 Audi Q5/SQ5

034 Motorsports
US$965.00
Density Line Control Arm Kits, B9/B9.5 Audi Q5/SQ5
Density Line Control Arm Kits, B9/B9.5 Audi Q5/SQ5
Density Line Control Arm Kits, B9/B9.5 Audi Q5/SQ5
Density Line Control Arm Kits, B9/B9.5 Audi Q5/SQ5
Density Line Control Arm Kits, B9/B9.5 Audi Q5/SQ5
MPN:
034-401-1075
SKU:
034-401-1075
Availability:
Contact us for availability
FreeShip:
Yes

Product Overview

Product Description:

034Motorsport's complete Density Line Control Arm Kit with Upper Adjustable or Non-Adjustable Control Arms are designed to be performance replacements for all eight of the factory front upper and lower control arms. The result is tighter handling and more precise steering response than even brand new factory control arms can offer. In addition, adjustable upper control arms allow optimal alignment for your lowered or track driven vehicle.

The factory front control arms are an integral part of the suspension, but can start wearing out as early as 40,000 miles - especially on enthusiast-owned vehicles which are driven hard on the street or track. As the rubber bushings degrade and ball joints develop play, alignment is compromised and steering becomes less precise. This kit is a drop-in replacement with feature improvements over stock, that will tighten up front-end feel and allow camber adjustment to significantly improve handling.

Density Line Non-Adjustable Control Arms:

034Motorsport's complete Density Line Upper Control Arms are designed to be a performance replacement for all four factory front upper control arms. Featuring high-durometer rubber bushings and high-quality ball joints, Density Line Control Arms are engineered to limit unwanted deflection in the suspension, resulting in tighter handling and more precise steering response than even brand-new factory control arms can offer.

Features:

Density Line Non-Adjustable:

  • Complete, Drop-In Replacement for Factory Upper Control Arms
  • Offers Improved Handling Feel & Steering Precision
  • High-Durometer Rubber Bushings (70 Durometer)
  • No Fluid, So Unlike OE Arms, the Bushings Cannot Leak
  • Includes New Hardware & Ball Joints

WHAT’S INCLUDED:

  • Front Lower Control Arms - Front (Left & Right)
  • Front Lower Control Arms - Rear (Left & Right)
  • Density Line Upper Control Arms:
    • Front Upper Control Arms - Front (Left & Right)
    • Front Upper Control Arms - Rear (Left & Right)
  • Rubber Spherical Bearing Dust Boots

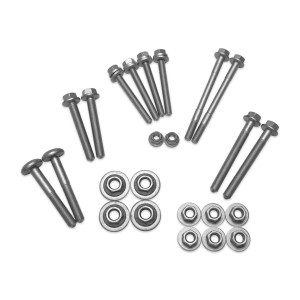

  • Installation Hardware Kit

OE PART INTERCHANGE:

Upper Arms:

  • Control Arm, Upper Front Left: 4M0 407 505 B
  • Control Arm, Upper Front Right: 4M0 407 506 B
  • Control Arm, Upper Rear Left: 4M0 407 509 B
  • Control Arm, Upper Rear Right: 4M0 407 510 B
  • Control Arm, Lower Front Left: 80A 407 151 B
  • Control Arm, Lower Front Right: 80A 407 152 B
  • Control Arm, Lower Rear Left: 80A 407 693 E
  • Control Arm, Lower Rear Right: 80A 407 694 E
  • Ball Joint Front Right and Left: 80A 407 689 B

Installation Note:

It is imperative that the suspension be compressed to static ride height before any suspension pivot bushings are tightened, as per the factory installation procedure. If this is not done, the bushings will tear prematurely as the twisting forces on them will be much higher than is intended. 034Motorsport's Limited Warranty on Density Line products does not cover premature failure due to improper installation or use. We highly recommend professional installation for this product.

Product Details & Fitment Notes

<p> 034Motorsport Density Line Lower Control Arm Kits are available with Density Line Adjustable (Coming Soon!) & Non-Adjustable Upper Control Arms! Replace your vehicle's aging, worn control arms with these performance-engineered Density Line units with adjustable upper arms to restore feel and improve handling precision beyond factory levels. <br><br> <strong>Purchasing Instructions: </strong> Select the correct version based on the following: </p> <ul> <li>Density Line (Non-Adjustable): Direct replacement of the factory control arms, performance-engineered with Density Line bushings to restore handling precision beyond factory levels.</li> <!-- <li>Camber Correcting: Add positive camber after lowering to reach factory alignment specifications and reduce tire wear.</li> <li>Track Spec: Gain additional negative camber for increased cornering grip and improved handling performance.</li> --> </ul> <span style="font-weight:bold;">Installation Effort: MEDIUM</span> <img src="/images/installation-difficulty-2.png" class="installEffort" alt="Install Difficulty - Medium"> <br> <strong>NVH Levels: Low - Medium</strong><br> <img src="{{media url="wysiwyg/NVH-Graphics-2023/NVH-level-1.5.jpg"}}" class="installEffort" alt="NVH Levels: Low - Medium"> <p><br> NVH is the measurement of how much noise, vibration, & harshness gets transmitted into the cabin of your vehicle. 034Motorsport Density Line Upper Control Arms transfer low to medium amounts of NVH to the cabin based on user feedback. NVH is subjective so some users may find NVH to be increased or decreased from our rating. If you are experiencing higher than quoted NVH with this product, please email [email protected] for further assistance. </p>
