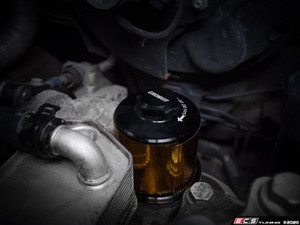

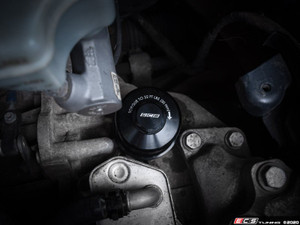

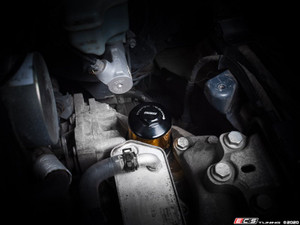

The ECS Tuning Billet Aluminum DQ250 DSG / S Tronic Oil Filter Housing is an attractive, durable upgrade, machined from a solid block of T6 6061 aluminum. Engineered in-house?to OEM specifications, our design includes OEM features that are often left out on other aftermarket housings, such as radiant heat protection, internal spring steel oil filter retention feature?and thread vent port.?The ECS DSG Filter Housing accepts a factory oil filter to maintain simplicity and OEM fitment. You can forget about cracked housings or stripped heads with our durable upgrade housing.
?
PART DESIGN
Designed and engineered in-house using FARO laser scanning and SolidWorks 3D CAD modeling?based on the OE housing geometry and features
Machined from a solid block of 6061-T6 billet aluminum; direct replacement to OE PN?02E305047A /?02E305045
German style buttress thread modeled to engage the female threads on your DSG transmission smoothly and to provide a tight fit
24mm hex head machined into the top to retain the use of the OE offset tool
Vent hole machined at the base of the threads to allows air to escape from the housing during install.
This?vent is completely sealed off once fully installed
Torque specification laser etched on top of the housing in US customary and metric units for easy reference
Utilizes the Genuine OEM O-Ring seal
Includes a custom cut DEI?Reflect-A-GOLD? sheet for radiant heat protection of up to 800? F.?
?
KIT CONTENTS
ECS Tuning Billet Aluminum DSG Oil Filter Housing
DEI?Reflect-A-GOLD? Heat Wrap?

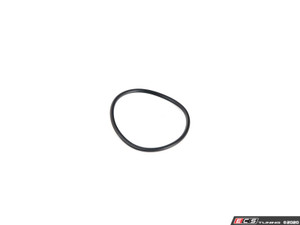

Genuine OEM VW/Audi DSG Filter O-Ring
?
PRODUCT DEVELOPMENT
Our ECS?Billet Aluminum DSG Oil Filter Housing?was designed, engineered, tested and quality inspected by our Research and Development team in our Wadsworth, Ohio facility. We strive for the highest level of precision and quality through leading-edge product development technology including FARO laser scanning for reverse engineering and quality inspection, SolidWorks 3D CAD modeling, rapid prototyping utilizing our in-house 3D printer, and rigorous long term product testing.
?
INSTALLATION AND SUPPORT
ECS Tuning
ECS Tuning
ECS Tuning
ECS Assembled Kit
