ECS N20 Baffled Oil Catch Can System

Direct injection engines offer serious benefits for performance but have a notorious Achilles’ Heel as a result. Since fuel is supplied directly rather than across the intake valves as it is in traditional port injection, the valves suffer from carbon buildup that would otherwise be cleaned by fuel as it was supplied to the combustion chamber. Over time, direct injection engines suffer from a loss of power and even stuck open valves in the worst-case situation. Naturally, that’s the last thing you want, especially in your BMW, as the cleaning process is fairly expensive. Fortunately, our new Baffled Catch Can for your N20-powered BMW is designed to intercept those oil particles from the PCV system and trap them in the specifically engineered reservoir.

This in-house engineered baffled catch can retains all the OEM BMW parts it needs while replacing the rest of the system with our solution. Keep your intake valves and ports free of carbon buildup with this perfect remedy for the direct injection engine’s biggest downside.

Key benefits of the ECS Baffled Oil Catch Can System:

• Highly Efficient Oil Separator (Catch Can):
  • Strategically positioned 4 chamber baffle system maximizes oil / air separation
  • Engineered to create multiple changes in the direction of airflow within the separator to cause oil droplets to fall out of suspension before exiting the catch can
  • Knurled and black anodized integrated oil dipstick makes inspecting oil volume of the reservoir clean and simple
  •  Fully serviceable for routine cleaning and maintenance; Includes 2.5mm allen key to remove baffle plates for cleaning
  • -10AN ORB (O-Ring Boss) fittings for leak-free fitting connections
  • 6061-T6 billet machined body, anodized black for lasting protection and appearance
  • Easy to drain reservoir, simply un-threads from the oil separator for quick draining or cleaning

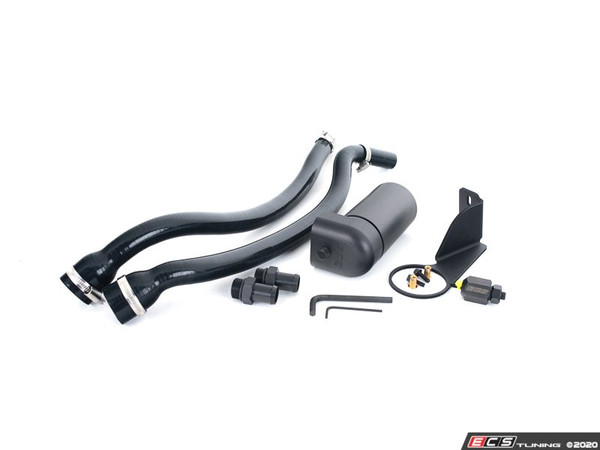

Each system includes the following:

• 4 Chamber Baffled Oil Catch Can with integrated dipstick and service tool
• CNC bent, black anodized, aluminum catch can bracket
• Durable silicone hoses
  • Cut to the perfect length -- This alone makes installation as easy as changing your own oil!
  • Oil and fuel resistant
• Billet machined 6061-T6 aluminum components, anodized black
• Rivnut Installation Tool

Engineered and manufactured in the USA, you can expect the best performance and longevity with our superior Oil Catch Can System from ECS Tuning!
