ECS Tuning Aluminum Street Shield Skid Plate - With Reinforcement Kit

Protect your vitals with our ECS Tuning in-house engineered Aluminum Street Shield Skid Plate with Reinforcement Kit. Constructed from 3/16" (4.76mm) thick 5052 aluminum and 1.25" DOM tubing vertical braces and?weighing in at only 24?lbs total, with factory modeled air ventilation, our skid plate and reinforcement bars are?sure to stand up to extreme road conditions that your OEM plastic belly pan could not.

Additionally, the ECS skid plate encompasses the full length of the engine undercarriage from the front bumper cover to the front engine subframe to provide complete protection. Conveniently this kit includes?zinc-coated steel subframe hardware, aluminum skid plate spacers?and all factory mounting hardware?for easy installation.

The Street Shield Reinforcement Kit?bolts directly to the back of the crash beam and then directly to the ECS Street Shield Skid Plate for all metal mounting points. No drilling, no cutting required, just simple direct-fit, rugged protection!

?

PART DESIG

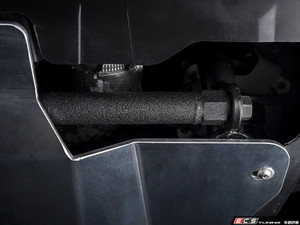

Street Shield Reinforcement Kit:

• Vertical supports feature beefy 1.25? DOM tubing with .095? wall thickness

• Extra support provided by a front impact brace with 1.0? DOM tubing with .095? wall thickness

• All joints are professionally TIG welded and black powdercoated for corrosion protection?

• Made to be structurally rigid in the event of impacts to not bend or deflect

Street Shield Skid Plate:

• 3/16" (4.76mm) thick 5052 CNC-bent aluminum?

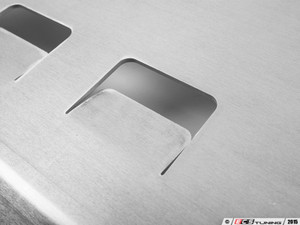

• Features OEM-modeled air ventilation slots?

• Full front body protection (bumper to subframe)

?

KIT CONTENTS

STREET SHIELD REINFORCEMENT KIT

• 1.25" DOM Tubing Street Shield Vertical Support Braces (Left and Right)

• 1.0" DOM Tubing Street Shield Horizontal Impact Brace

• Class 10.9 coated steel side mounting bolts

• Coated high strength securing nuts?

• Stainless button screws to replace OE fender liner torx bolts?

STREET SHIELD SKID PLATE KIT

• 5052 Aluminum Skid Plate
• Zinc-plated mounting hardware and aluminum subframe spacers
• New replacement fender liner speed clips and torx fasteners?

?

FEATURES

• Our ECS Aluminum Street Shield adds peace of mind and protection against potholes, road debris and other predators looking to put a hole in your pan.

• With the ECS Street Shield Reinforcement Kit installed you gain added protection by reinforcing the ECS Street Shield Skid Plate with beefy 1.25" DOM vertical tubing and 1.0" DOM front tubing for extra bracing.?

• If you drive in uncertain terrain and there is no margin of error in deflection with the OEM plastic fender liners then this is the added protection you have been waiting for!

?

PRODUCT DEVELOPMENT

• Our ECS Street Shield Skid Plate and Reinforcement Kit?were designed, engineered, tested and quality inspected by our Research and Development team in our Wadsworth, Ohio facility. We ensured the highest level of precision and quality is delivered throughout rigorous long term product testing and leading edge product development methods.

?

INSTALLATION AND SUPPORT

• Looking for installation tips? Look no further, we put together a full installation tutorial from start to finish! See our Installation PDF under the INSTALLATION Tab for more information.
