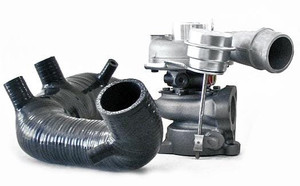

FrankenTurbo F23 Hybrid Turbo Kit for Transverse VW/Audi 1.8T

"This is NOT a bolt on modification for Mk4 cars. Mk4 cars will require a different or custom manifold and turbo up-pipe for this kit to be installed properly."


Will include a free inlet hose.

Here's what you get in the $1099 Base Kit. MixedFlow hybrid K04 turbo with billet compressor wheel. Custom oversized, 4-ply reinforced turbo inlet pipe and, a 2-year limited warranty.

Manufacturing Specs:

• Designed, balanced, & assembled in the USA.
• 10-blade MixedFlow Inconel 625 alloy steel turbine rotor
• Anti-surge 2618-series aluminum billet compressor wheel
• Ceramic coating option
• 42CrMo high-strength rotor shaft
• K16-specification 360 Degree Thrust Bearing
• Customizable "high-lift" actuators (6psi - 16psi)
• Fully ported 26mm wastegate chamber with oversized 34mm cover
• Si-Mo (Silicon Molybdenum) cast iron turbine housings (1000°C rating) with oversized 47mm port-matched inlet
• All parts manufactured to meet or exceed OEM specs

• Upgraded Diverter Valve
• Custom 4-ply silicone TIP w/ oversized outlet to turbo
