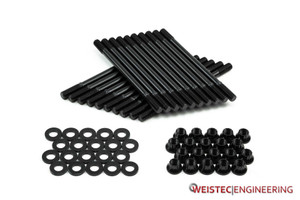

Weistec has exclusively partnered with ARP, the top name in performance engine hardware. Head studs are used to fasten the heads to the block in place of the factory head bolts. The connection between the cylinder heads and the block is a complex part of the engine. Coolant and oil flow back and forth between the block and the cylinder heads. The head gasket keeps the coolant, oil, and air charge in the cylinders separate from each other with the help of pressure generated by the head bolts. The factory head bolts are "torque to yield" meaning that when installed, they are tightened to the point where they permanently stretch. The addition of out APR head studs suites the factory compressed M113K engine, especially when increasing boost pressures and power levels.
With 220,000+PSI of tensile strength, our ARP 2000 Head Studs are able to hold down the cylinder heads with far greater pressure than the factory head bolts, without permanent stretching. The result is a more reliable performance engine that will not be susceptible to leaks between the heads and block. Quality head studs are among the top items in the list of parts that allow an engine to reliably reach high power levels.
