Luft-Technik B9 A4 Intercooler And Charge Pipe Kit

(No reviews yet) Write a Review
Was: US$1,149.78
Now: US$1,049.31
Contact us for availability
Free Shipping

On orders over $149 within the contiguous U.S. only and on orders over $399 within Canada.

Full kit to upgrade your charge pipes and FMIC

Product Overview

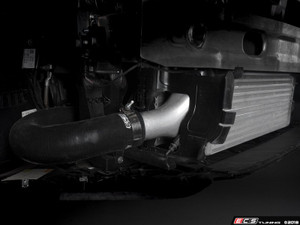

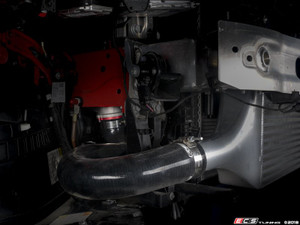

The ECS Tuning Luft-Technik Front Mount Intercooler and Charge Pipe Kit was designed and engineered in-house to provide you with a direct bolt-on system to increase air flow, decrease restrictions, and drastically lower temps!

The R&D team at ECS Tuning?has spent countless hours creating and testing a system to optimize?performance and efficiency while providing?the?clean look that Audi owners have come to expect. We designed the intercooler and charge pipe kit to be a direct mount, resulting in a simple install for a complete cooling solution.??

ECS Tuning's Luft-Technik Intercooler features an aluminum bar and plate core with?cast aluminum end tanks, finished in a silver powder coat with the?embossed ECS Tuning logo. The core is not only thicker (3.5" compared to OEM at 3") but it offers a 65.5% increase in frontal area compared to stock intercooler.? Each intercooler is pressure tested to withstand a minimum of 3.5 bar and designed to increase power, improve efficiency, and reduce?heat soak. Our engineers provided a?proper?fit by utilizing factory mounting locations?and ensuring that no trimming or cutting would be necessary, making installation completely reversible.

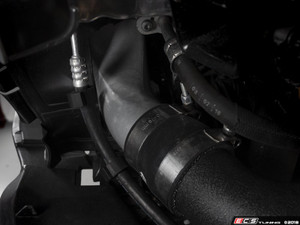

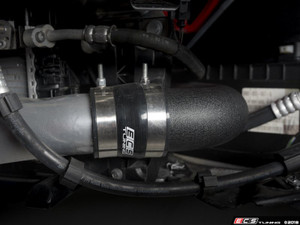

Our Charge Pipe Kit includes a 5-ply silicone turbo outlet pipe to optimize air flow path.? The intercooler outlet pipe is made of 6063 aluminum and features a diameter of?70mm.? Designed to be a direct fit, the hard pipe maintains the factory MAP sensor location and comes with all necessary hardware.? The aluminum pipe is a great replacement for the brittle factory plastic pipe and also deletes the noise chamber; resulting in an increase in turbo sound!

Increasing the surface area by using a larger more efficient core design and providing a smoother air path,?we were able to?lower temps by 65 degrees while increasing the intercoolers efficiency by 105% percent!? The temperature and efficiency data shows that there is a significant reduction in air temperature leaving the intercooler, which will lead to power gains in high stress and high temperature conditions while reducing the strain on the engine.??During dyno testing, gains of 30 HP and 40 lbft of torque were measured!

Key Features:

  • Reduced intake temperatures and?air turbulence
  • Increased?air flow capacity
  • Max HP Gain 30 @ 4550 RPM
  • Max TQ Gain 40 @ 3000 RPM
  • Up to 105% improved intercooler efficiency
  • Reduced intake temps by as much as 65*F during dyno runs
  • Pressure drop reduced by 47%
  • Cast aluminum intercooler end tanks
  • Bar and plate design intercooler core

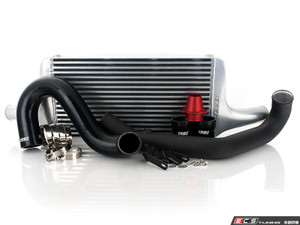

  • Complete with necessary silicone turbo outlet hose, aluminum charge pipe,?and turbo adapter for installation

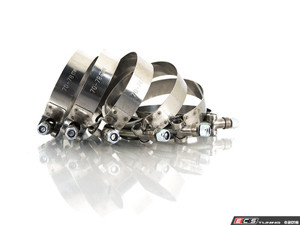

  • Includes stainless steel t-bolt clamps and all necessary hardware for installation
  • Easy and?direct replacement upgraded intercooler

This system is capable of withstanding greater heat and higher boost pressure over factory.? The Luft-Technik Intercooler System?was designed with a focus on improving performance while maintaining OEM fitment with the use of quality parts.?Attention to detail is never missed here at ECS Tuning, and this?is no exception.


Luft-Technik Intercooler:

  • Cast Aluminum End Tanks
  • Pressure Tested to 3.5 Bar?
  • 23"x11.75"x3.5" Bar &?Plate Design Core
  • Includes all hardware, brackets, and clamps needed for installation
  • Silicone turbo outlet hose to decrease turbulence and adapt to the larger inlet of the intercooler

Luft-Technik Charge Pipe Kit:

  • 5-ply silicone turbo outlet pipe with optimized flow path

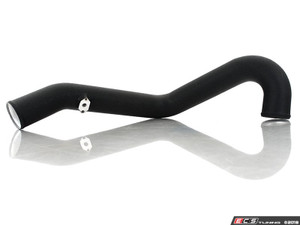

  • 6063 aluminum 70mm intercooler outlet pipe
  • Maintains factory MAP sensor?
  • Removes factory noise chamber and replaces factory plastic piping that has potential to fail under increased boost conditions

For help with installation?we have provided you with a PDF, available under the Installation category on the product page, to guide you through fitting on your new front mount intercooler!

****Vehicle configuration in dyno graphs shown:

  • APR Stage 1 Tune ES3146846
  • ECS Kohlefaser Luft-Technknik Intake ES3143733
  • ECS?Performance Baffled Oil Catch Can System ES3194688
  • ECS Charge Pipe Kit ES3557444
