Luft-Technik Intake System - With Red Couplers | ES3184609

ECS Tuning
(No reviews yet) Write a Review
Was: US$431.99
Now: US$410.39
Luft-Technik Intake System - With Red Couplers | ES3184609
Luft-Technik Intake System - With Red Couplers | ES3184609
Luft-Technik Intake System - With Red Couplers | ES3184609
Luft-Technik Intake System - With Red Couplers | ES3184609
Luft-Technik Intake System - With Red Couplers | ES3184609
Luft-Technik Intake System - With Red Couplers | ES3184609
Luft-Technik Intake System - With Red Couplers | ES3184609
Luft-Technik Intake System - With Red Couplers | ES3184609
Luft-Technik Intake System - With Red Couplers | ES3184609
Luft-Technik Intake System - With Red Couplers | ES3184609
Luft-Technik Intake System - With Red Couplers | ES3184609
Luft-Technik Intake System - With Red Couplers | ES3184609
Luft-Technik Intake System - With Red Couplers | ES3184609
Luft-Technik Intake System - With Red Couplers | ES3184609
Luft-Technik Intake System - With Red Couplers | ES3184609
Luft-Technik Intake System - With Red Couplers | ES3184609
Luft-Technik Intake System - With Red Couplers | ES3184609
Luft-Technik Intake System - With Red Couplers | ES3184609
Luft-Technik Intake System - With Red Couplers | ES3184609
Luft-Technik Intake System - With Red Couplers | ES3184609
Luft-Technik Intake System - With Red Couplers | ES3184609
Luft-Technik Intake System - With Red Couplers | ES3184609
Luft-Technik Intake System - With Red Couplers | ES3184609
Luft-Technik Intake System - With Red Couplers | ES3184609
Luft-Technik Intake System - With Red Couplers | ES3184609
Luft-Technik Intake System - With Red Couplers | ES3184609
Luft-Technik Intake System - With Red Couplers | ES3184609
MPN:
ES3184609
SKU:
ES3184609
Availability:
Contact us for availability
FreeShip:
Yes

Product Overview

? ? The ECS Tuning MK5 R32?LuftTechnik (Air Technology) Induction System, is a premium inhouse designed engine aspiration product?that not only delivers remarkable power gains, but also blends automotive engineering into an artistic canvas of underhood?beauty. Our system?is constructed of premium materials and utilizes the most advanced development methods available to date. Our system is?engineered to fit exactly like OEM with simple hand tools and includes all new installation hardware.?

Starting at the front, the oversized, powdercoated aluminum heat shield assembly?is designed to feed massive amounts of outside air directly to the air filter element and to shield against radiant engine bay heat, so only?cool, ambient air is drawn in.?The heat shield is perfectly designed to seal the preinstalled EPDM foam rubber edge trim against the?hood liner pad?to further stave off engine bay heat and to maintain?repeatable power delivery.?

Inlet air is filtered by our customspec'd high flow, reusable cotton gauze air filter element. Featuring a?3 5/8" bell mouth inlet that smooths incoming air,?a conical shape?that maximizes filtration?surface area and an 8ply cotton gauze construction to provide the best balance between airflow and filtration efficiency. ?

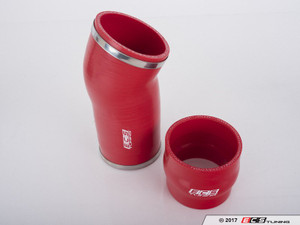

After the air is filtered, it is then directed through the massive 3.5" aluminum induction tubing which features?a CNC bent and welded support bracket. 4ply silicone couplers and smooth band, stainless hose clamps are also included for long lasting, durable operation.?

Throughout years of inhouse development, performancedriven design changes?and?strict?product testing, our design has?resulted in a highly effective?air induction system.?Our induction system?not only looks good but is real world tested with performance that is second to none. If you expect nothing but the best, like we do, this is the only system for you!

?

The ECS Tuning LuftTechnik Induction System Includes the following:?

  • Wrinkle Black Powdercoated CNC Bent Aluminum?Heat Shield Assembly with preinstalled edge trimming?
  • 3 5/8" Conical, Cotton Gauze, Reusable Air Filter
  • 3.5" Wrinkle Black Powdercoated Aluminum?Induction Tube
  • 4Ply Silicone Couplers with ECS Tuning Logo
  • Stainless Steel German Style Hose Clamps
  • All new?mounting hardware
  • ECS Tuning License Plate Frame (White) and 2 Window Decals (White)

?

PERFORMANCE:?

Dyno Tested VW MK5 R32??(FWD Mode)?with United Motorsport ECU?Software, High flow resonator and exhaust flapper delete:

  • Maximum Gains: +8 WHP @ 6,627 RPM and +2.0?Ft/lbs of Torque @ 3,000 RPM
  • Peak HP Gains: +8 WHP @ 6,627 RPM. Largest WHP gains are between 5,200 RPM 6,200 RPM
  • Peak Torque Gains: +2 Ft/lbs Wheel Torque @ 3,000 RPM Resulting in consistent low end torque increase from 2,200 RPM 3,200 RPM
    • Additional gains were recorded between 5,300 RPM 6,000 RPM

?

Looking for installation tips? Look no further, we put together a full installation tutorial from start to finish including how to remove your OEM parts in detail! See our Installation PDF under the INSTALLATION Tab for more information.
