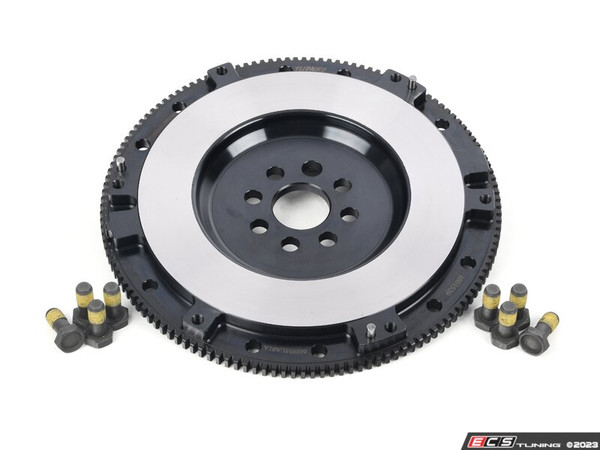

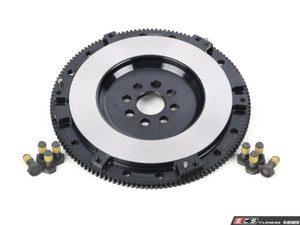

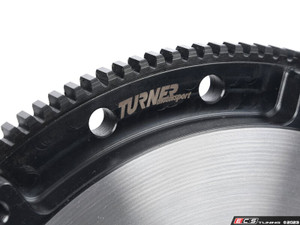

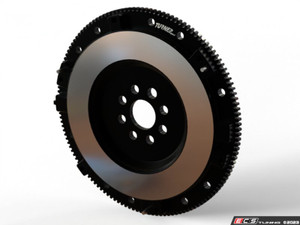

M20 Lightweight Flywheel | ES4811186

Lightweight flywheel for quicker, effortless revs that improve throttle response and free up lost horsepower. Tested and approved by the engineering team at Turner Motorsport. Tested in early, late, ETA and IS model E30s for confirmed fitment.

Introducing the Turner Motorsport M20 Flywheel: an ingenious blend of lightweight design, rich features, and remarkable strength! Crafted from 4140 HT Steel, this flywheel is precision-machined from a solid piece, ensuring unmatched durability. By strategically trimming excess weight from its original design, they achieved a significant reduction in weight, giving new life to your M20 engine. With upgraded efficiency, your M20 can now swiftly spin to high RPMs, unleashing the full power of this absolute unit of an engine. The Turner flywheel features a ring gear profile compatible with all starters, alongside a reference tab tailored for early cars equipped with bellhousing-mounted sensor crank position detection.

Do you have an early model transmission with the crank sensors on the bellhousing? Maybe you have a late 325is with the crank sensor on the front of the engine, or maybe you have a 1988 super ETA. No matter which E30 model you have, this flywheel is the perfect choice for you.

During the engineering process, the team at Turner encountered the full spectrum of M20 and flywheel combinations. Early cars with bellhousing crank sensors, late cars with front mounting crank sensors, and even a super ETA. On this adventure, they found both early and late single-mass flywheels and even the dual mass that was thought to be just a myth at this point. At first, they were hesitant that we could make one flywheel to fit them all but with the persistence of the engineering team (fleet of E30 enthusiasts), we can proudly say this M20 flywheel does in fact fit all engine and transmission applications you can think of.

Features and benefits:

• Fits early and late models with the M20
• Fits shallow and deep bellhousing transmissions
• Ring gear suited for both starters (P# 12411726504 + 12411361874)
• Heavier than other lightweight flywheels, and lighter than OEM, it's like the Goldie Locks of flywheels - it's just right
• Reference pin for bellhousing crank sensor
• Strong Single-Piece 4140 HT Steel construction
• Designed to be used with factory and OE clutches

Weight Comparisons:

• ?Factory single mass flywheel EARLY (11221705046) - 23.69 lbs.
• Factory single mass flywheel LATE (11221706573) - 18.74 lbs.
• Dual mass flywheel (21211225979) - 27.56 lbs.
• Turner flywheel - 14 lbs.

What you need:

• Short bellhousing transmissions (I/IS) -  Throw-out bearing P# 21517521471 (325)
• Tall bellhousing transmission (ETA) - Throw-out bearing P# 21511204525 (323)
