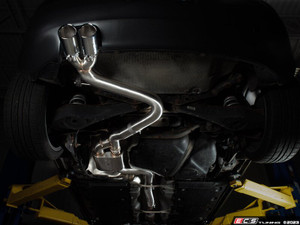

MK5 Golf 2.5L Catback Exhaust System

True automotive passion comes in many forms. For us, we've found driving euphoria with our in-house engineered ECS Tuning Exhaust System.

Enjoy your Volkswagen MK5 Golf 2.5L with the most engaging, race-inspired, performance exhaust system. Intoxicating exhaust notes fuel your desire to push your engine to its limits with every ounce of power and every engine revolution. Experience your driving passion with our ECS Exhaust!

Featured on the ECS Tuning YouTube channel, click the link to hear this exhaust! https://www.youtube.com/watch?v=6bTEuqC3E-I

PART DESIGN:

• In-house designed and engineered using FARO ARM laser scanning technology for precise fitment

• 3.0" T304 Stainless Steel Mandrel Bent, Brushed Tubing with 1.25mm wall thickness

• 3.0" Tailpipe Section with Tig-Welded 2.5" Dual Tip Outlets

• T304 Stainless Steel 12mm barbed round stock exhaust hangers Tig-Welded in OE locations for precise fitment

• Strategically placed slip joints provide the most adjustability to obtain perfect fitment

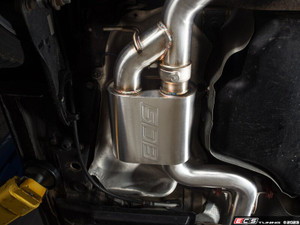

• VALVED MUFFLER:

  • Tested multiple muffler designs to achieve the most desirable exhaust notes with the largest delta between valve closed and valve open driving experiences

  • Valve Closed Routing - 3-chamber perforated reduction tubes with stainless steel wool packing material provides a sporty driving experience without causing excessive resonance, volume and performance loss

  • Valve Open Routing - Straight-through 3.0" perforated tube with stainless steel wool packing material provides the most unobstructed flow path for race-inspired driving experience to maximize volume

  • Vacuum-actuated exhaust valve provides outstanding reliability in the harshest conditions. Unlike electronic servo motors that are prone to failure, our exhaust valves have been tested in thousands of applications and have proven to be reliable.

• NON-VALVED MUFFLER:

  • In-House designed to provide a sporty driving experience like no other

  • Perforated core with stainless steel wool packing for sound absorption

  • Straight Through "Turbo Style" Muffler

  • ?Designed to maximize ground clearance while still being compatible with aftermarket components such as our ECS Tuning Rear Subframe Brace.

KIT CONTENTS

• Front Pipe Assembly

• Muffler Assembly

• Tailpipe Assembly with Dual Tip Merge Pipe and stainless steel Accuseal clamps

• ECS 3.5" Swivel Exhaust Tips (2) - Choose chrome, black chrome, titanium or carbon fiber

• Exhaust Valve Controller Installation Kit with Remote Key Fobs (VALVED SYSTEM ONLY)

  • Remote Key Fobs (2)
  • Valved Solenoid Control Module with wiring harness to connect control module to pneumatic solenoid
  • Pneumatic Control Solenoid
  • Silicone Vacuum Tubing  (2mm ID x 16.5' length) w/ cable ties and T-tap
  • Brass Tee Fitting (2mm nipple)
  • Vacuum Check Valve (2mm nipple)

PRODUCT DEVELOPMENT

• Our ECS Tuning Exhaust Systems were designed, engineered, tested and quality inspected by our Research and Development team in our Wadsworth, Ohio facility. We strive for the highest level of precision and quality through leading-edge product development technology including FARO laser scanning for reverse engineering and quality inspection, SolidWorks 3D CAD modeling, rapid prototyping utilizing our in-house 3D printer, and rigorous long term product testing.

INSTALLATION AND SUPPORT

• NOTE: If you choose the valved exhaust, you will need a vacuum source from the engine in order to actuate the exhaust valve.
