If you?re looking to improve the handling of your VW MK5/MK6 Golf, GTI or Jetta, this is the best place to start! These cars have more body roll than desired?and the stock sway bar doesn't?quite do enough for most?owners to be satisfied.?
Larger diameter sway bars have a higher torsional spring rate which helps resist excessive body roll. By eliminating the excessive body roll and changing the stiffness of the sway bars front to rear, we can improve handling characteristics by reducing understeer and keep the tire in full contact with the ground.?By upgrading to the ECS Tuning Adjustable Sway Bar, you will experience less body roll, and a massive improvement to the handling characteristics of your vehicle*, with virtually no sacrifice in ride quality.?
ECS Tuning sway bars are adjustable?and allow for a ?softer? setting, or a ?stiffer? setting, depending on your driving preferences.
?
PART DESIGN

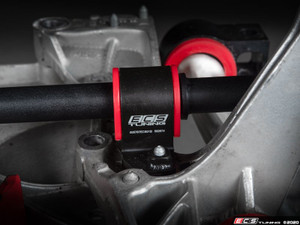

Sway Bar
25.10mm?OD,?solid, sprung steel tubing
+1.5mm larger diameter than the stock GTI front sway bar (23.6mm)?
Wrinkle black powder coated for great looks and corrosion resistance
90A durometer polyurethane bushings - reduces flex at mount as compared to OEM rubber
Bushings feature internal grease channels to consistently provide lubricity for squeak-free operation?
Black zinc coated steel sway bar?mounting brackets?
Sway Bar End Links
Main body?constructed from 6061-T6 billet aluminum and anodized red for corrosion protection
Feature a knurled center section and machined hex wrenches at either side for easy on the car adjustments
Zinc black chromate lock nuts and wave washers secure the center body?length to maintain adjustment height. Total range of adjustment?is from 290mm-340mm.
Gray zinc coated heavy duty ball joint ends complete the connection from the sway bar to the chassis. The ball joint ends include weather resistant rubber boots with stainless steel wire retainers for OE-like quality and extended durability against?salt, rain and ozone impact.
Each set?includes zinc plated Nyloc nuts for final installation and hardened steel washers to be placed on either side of the sway bar to allow for greater contact surface.?
?
KIT CONTENTS
ECS Tuning Adjustable Sway Bar - Front Position
ECS Tuning Adjustable Sway Bar End Links - Front?Position
Polyurethane sway bar mounting bushings (2)
Steel sway bar mounting brackets (2; upper & lower)
5mL tube of polyurethane bushing grease?
Subframe Hardware Kit
?
PERFORMANCE FEATURES
Reduced body roll without excessive change in dynamic F/R balance * (when used with front and rear sway bar together)?
Increased cornering speed and response time
?
PRODUCT DEVELOPMENT
Our ECS?Adjustable Sway Bar?was developed in-house,?tested and inspected by our Research & Development team in our Wadsworth, Ohio facility. We strive for the highest level of precision and quality through leading-edge product development technology and methods, ensuring the necessary long term product testing was performed on multiple test?vehicles in the harshest conditions available.?
?
INSTALLATION AND SUPPORT
Need installation tips? We put together a full installation tutorial from start to finish including how to remove your OEM parts in detail! See our Installation PDF under the INSTALLATION Tab for more information.?
* We recommend our front sway bar to be used with a larger diameter rear sway bar upgrade first. Installing the ECS front sway bar with the factory rear sway bar WILL result in more understeer.
