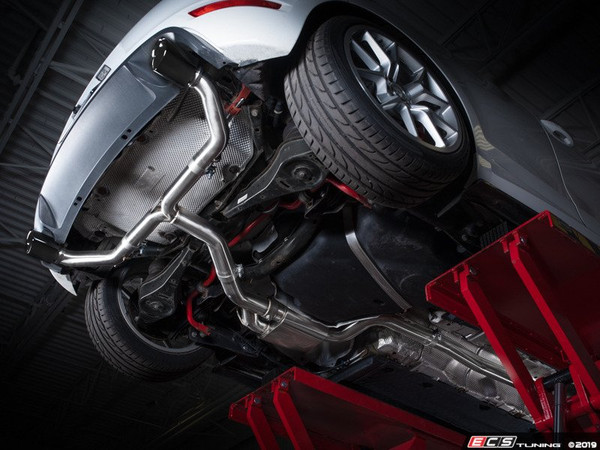

True automotive passion comes in many forms. For us, we've found driving euphoria with our in-house engineered ECS Tuning Exhaust System.
Enjoy your Volkswagen MK6 GTI with the most engaging, race-inspired, performance exhaust system. Intoxicating exhaust notes fuel your desire to push your engine to its limits with every ounce of power and every engine revolution. Experience your driving passion with our ECS Exhaust!
PART DESIGN
CATBACK:
In-house designed and engineered using FARO ARM laser scanning technology for precise fitment
3.0" T304 Stainless Steel Mandrel Bent, Brushed Tubing with 1.25mm wall thickness

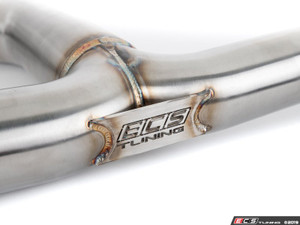

Dual 2.5" Tailpipe Sections with Tig-Welded Merge Pipe and Laser-Cut ECS Logo Plate

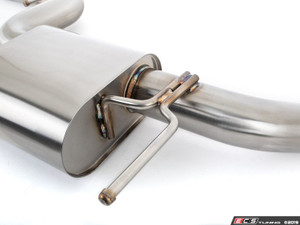

T304 Stainless Steel 12mm barbed round stock exhaust hangers Tig-Welded in OE locations for precise fitment (Note: RR exhaust hanger will need rotated 180 degrees)
Strategically placed slip joints provide the most adjustability to obtain perfect fitment
VALVED MUFFLER:
Tested multiple muffler designs to achieve the most desirable exhaust notes with the largest delta between valve closed and valve open driving experiences
Valve Closed Routing - 3-chamber perforated reduction tubes with stainless steel wool packing material provides a sporty driving experience without causing excessive resonance, volume and performance loss
Valve Open Routing - Straight-through 3.0" perforated tube with stainless steel wool packing material provides the most unobstructed flow path for race-inspired driving experience to maximize volume
Vacuum-actuated exhaust valve provides outstanding reliability in the harshest conditions. Unlike electronic servo motors that are prone to failure, our exhaust valves have been tested in thousands of applications and have proven to be reliable.
NON-VALVED MUFFLER:
In-House designed to provide a sporty driving experience like no other
Perforated core with stainless steel wool packing for sound absorption
Straight Through "Turbo Style" Muffler
?Designed to maximize ground clearance while still being compatible with aftermarket components such as our ECS Tuning Rear Subframe Brace.
DOWNPIPE (optional):
In-house designed and engineered using FARO ARM laser scanning technology for precise fitment
3.0" T304 stainless steel CNC-mandrel bent tubing with 1.5mm wall thickness
10mm thick CNC laser-cut turbine flange prevents heat-warping and is precision ground for optimum gasket sealing capacity
Stainless steel bellow flex section designed to provide a wide range of engine movement and heat expansion
200 Cell high flow metallic catalytic converter
100% Tig-welded at each joint
T304 stainless steel mounting bracket with Tig-welded barbed hangers locate our downpipe to the OEM mounting bracket
Stainless steel oxygen sensor bungs are welded in OE-locations so no extension harness is required.
NOTE: CCTA engines will need to plug the extra O2 bung (CBFA-specific) with the included O2 plug and sealing washer

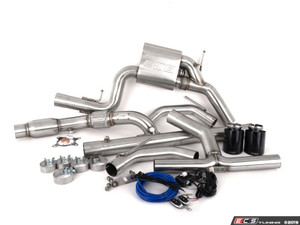

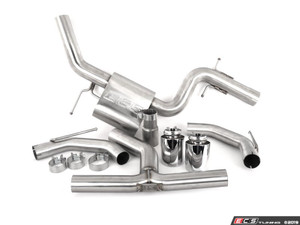

KIT CONTENTS
CATBACK:
OE-Downpipe reducer with stainless steel Accuseal style clamps
Muffler Assembly
J-Pipe Assembly and Dual Tailpipes with stainless steel Accuseal clamps

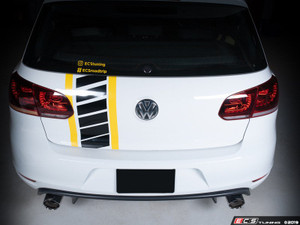

ECS 4.0" Swivel Exhaust Tips (2) - Choose chrome, black chrome or carbon fiber

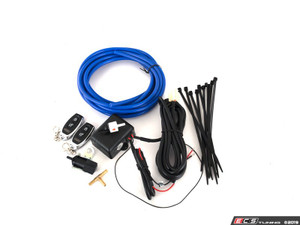

Exhaust Valve Controller Installation Kit with Remote Key Fobs (VALVED SYSTEM ONLY)
DOWNPIPE (optional):
High-Flow Downpipe Assembly with 200 cell cat
Downpipe Installation Kit (gasket, nuts and mounting bracket hardware)
PERFORMANCE FEATURES
CATBACK CONFIGURATIONS:
Dyno tested on our in-ground Mustang "AWD 500 SE" Dyno with our ECS Tuning Shop MK6 GTI while equipped with our ECS Kohlefaser Luft-Technik Intake, APR Stage 1 ECU Software and the OEM downpipe.
VALVED SYSTEM: Maximum gains of +9 WHP and +8 FT/Lbs of torque with the exhaust valve "open"
NON-VALVED SYSTEM: Maximum gains of +11 WHP and +10 FT/Lbs of torque
TURBO BACK CONFIGURATIONS:

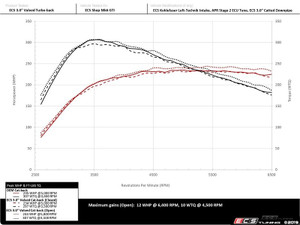

Dyno tested on our in-ground Mustang "AWD 500 SE" Dyno with our ECS Tuning Shop MK6 GTI when bolting on just our Catback Exhaust System while equipped with our ECS Kohlefaser Luft-Technik Intake, ECS 3.0" High Flow Downpipe and APR Stage 2 ECU Software
PRODUCT DEVELOPMENT
Our ECS Tuning Exhaust Systems were designed, engineered, tested and quality inspected by our Research and Development team in our Wadsworth, Ohio facility. We strive for the highest level of precision and quality through leading-edge product development technology including FARO laser scanning for reverse engineering and quality inspection, SolidWorks 3D CAD modeling, rapid prototyping utilizing our in-house 3D printer, and rigorous long term product testing.
INSTALLATION AND SUPPORT
Looking for installation tips? Look no further, we put together a full installation tutorial from start to finish including how to remove your OEM parts! See our Installation PDF under the INSTALLATION Tab for more information.
Head over to our YouTube channel for our full feature video @ ECS Tuning! -- https://www.youtube.com/watch?v=Hg-3nLuhlD4
NOTE:
A boost tap is required for exhaust valve operation - See ES2718328, sold separately
The included remote key fob is used to open & close the exhaust valve.
