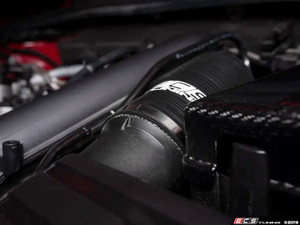

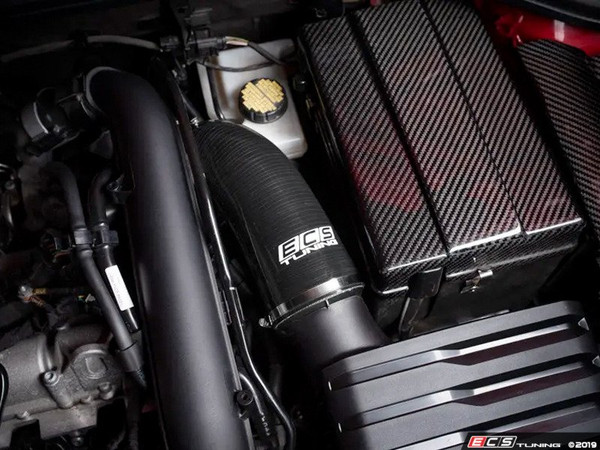

MK7 Golf/Jetta 1.4T Silicone Turbo Inlet Hose | ES3660431

The corrugated turbo inlet hose?found in the OEM air intake system was not designed for performance or modifications. It was?designed to get the job done, and when adding a performance filter, intake, or tune the stock inlet?hose?can start to show its weaknesses when suction from the turbocharger is increased.

The ECS Silicone Turbo Inlet Hose for the VW MK7 Golf/Jetta 1.4T was?designed inhouse with a highquality 5ply reinforced construction?to provide?a strong but flexible structure and secure fit. Smooth bends and internal walls with a counterbored outlet provides unimpeded airflow, while the smooth, gloss black exterior adds an appearance upgrade to any engine bay.?

?

PART DESIGN

• Designed and engineered inhouse to replace the flimsy accordion turbo inlet hose

• Made from heavyduty, 5ply fiberglass reinforced silicone, which can handle higher temperatures and greater suction than the stock, corrugated plastic?hose

• Smooth bends and internal walls to reduce turbulent airflow

• Counterbored on the turbo inlet hard pipe side for the smoothest transition possible

• Gradual taper from the larger diameter of the airbox outlet to the smaller diameter of the turbo inlet hard pipe

• Includes smoothband, Germanstyle stainless steel hose clamps?

• Designed to resist oil and fuel degradation and tested up to continuous 250? Fahrenheit operating temperature

?

KIT CONTENTS

• Silicone Turbo Inlet Hose (1) with hose clamps (2)?

?

PRODUCT DEVELOPMENT

• Our ECS Silicone Turbo Inlet Hose was designed, engineered, tested and quality inspected by our Research and Development team in our Wadsworth, Ohio facility. We strive for the highest level of precision and quality through leadingedge product development technology including FARO laser scanning for reverse engineering and quality inspection, SolidWorks 3D CAD modeling, rapid prototyping utilizing our inhouse 3D printer, and rigorous long term product testing.

?

INSTALLATION AND SUPPORT

• Installation is straightforward and is easily reversible. Simply remove the OEM inlet hose?and pinch clamps and replace with our Silicone Turbo Inlet Hose?with 7mm gear clamps.?
