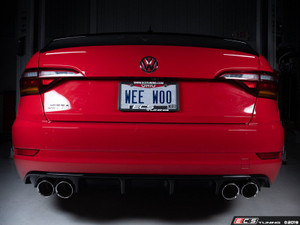

Looking to add an aggressive appearance upgrade while enhancing the exhaust note?on your MK7 Jetta 1.4T? Our ECS Tuning InHouse Designed & Engineered Quad Tip AxleBack Exhaust?System?gives your VW the enhanced performance upgrade you've been looking for! Our AxleBack system locates four of our ECS Tuning Swivel Exhaust Tips within our ECS Rear Diffuser for a sporty Euro appearance upgrade that's found nowhere else! Not only does our exhaust system add a German sports car look, but we?bump?up the volume by deleting the OEM muffler, which?adds?a smooth exhaust note that allows you to enhance your driving experience with your 1.4 liter turbocharged engine!?

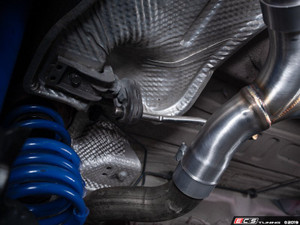

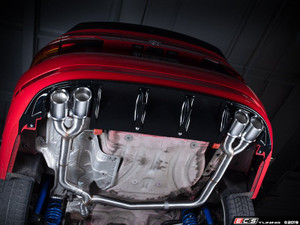

Our?exhaust system is made from high quality brushed T304 stainless steel with Tigwelded joints for an exceptional look and durability. Our exhaust connects to your stock exhaust system?with 1 simple cut and then routes spent exhaust gases to a pair of our CNCmandrel bent 57mm tailpipes before splitting into a quadpack of slantcut 3.5" swivel exhaust tips.?Extremely durable, stainless steel, barbed exhaust hangers are Tigwelded in place and an additional exhaust hanger?is included for the passenger's side tailpipe.?

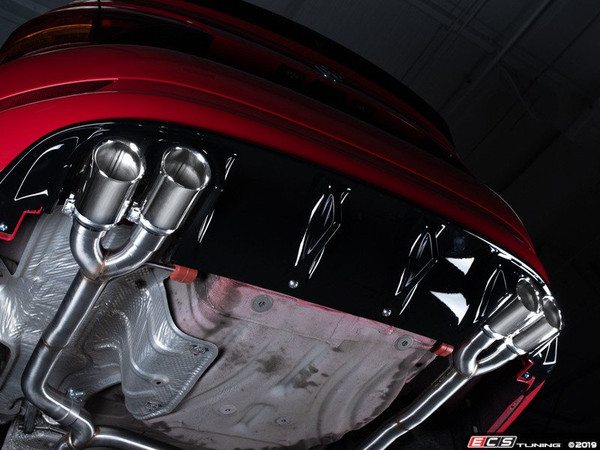

Our included ECS Tuning Quad Tip Rear Diffuser features a deep profile, an?aggressive blade design and exposed tip openings to house our ECS Tuning 3.5" swivel exhaust tips. The diffuser was designed and engineered inhouse to add an aggressive appearance upgrade while supporting our quad tip exhaust system.?
?
** NOTE: The rear valance is only serviceable on RLine and SEL Premium models, other trim levels will need to convert to the aforementioned trim model rear bumper to use our diffuser (see ES#4040412 instead).?
?
PART DESIGN

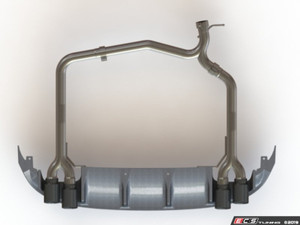

Designed and engineered inhouse using state of the art 3D laser scanning and CAD technology for precision fitment. Mimics the design of our carbon fiber version as closely as possible for similar styling.?
Featured on?Jamie Orr's MK7 Jetta 2018 SEMA build and tested on the?N?rburgring and the Autobahn
Made from lightweight, vacuum formed gloss black ABS polymer that is enhanced with?UVstabilizer?
CNCMachined tabs for perfect engagement?
Mimics the lower section of the bumper & OE valance lines to accentuate OEM features
Utilizes the dead space behind the OE valance to simulate a functional diffuser with great depth?
Outer blades blend into quad exhaust housings?that accommodate up to 3.5" OD exhaust tips, on either side of the diffuser, and will work in tandem with our ECS Quad Tip AxleBack Exhaust System or Borla Quad Tip Catback.
Mounts to OE clip locations and OE holes on the outer edges of the bumper with our supplied, stainless and corrosive resistant zinc hardware.
Includes a wrinkle black powdercoated, 5052 aluminum bracket?to add?rigid mounting to the center of the diffuser.
?
Inhouse designed and engineered using FARO ARM laser scanning technology for precise fitment?
T304 Stainless Steel Mandrel Bent, Brushed Tubing?with 1.25mm wall thickness
Dual 57mm?Tailpipes?with TigWelded connections?
Over double the cross sectional area?to free up the?restriction from the large, rear muffler
Minor increase in weight over OEM muffler (ECS AxleBack Exhaust 23 lbs VS OEM Muffler 18 lbs)
T304 Stainless Steel 12mm barbed round stock exhaust hangers?TigWelded in OE locations for precise fitment. An additional exhaust hanger?with mounting bolt is included for the passengerside tailpipe.?
Strategically placed slip joints provide the most adjustability to obtain perfect fitment
?
?
KIT CONTENTS
Rear Diffuser
Vacuum Formed ABS, Gloss Black, Rear Diffuser?
Center Mounting Bracket and mounting hardware
AxleBack Exhaust System?

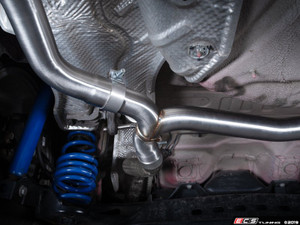

Merge pipe with dual tailpipe sections?
Stainless Steel Accuseal exhaust clamps (3)?
Passengerside exhaust hanger with rubber bushing and?mounting bolt

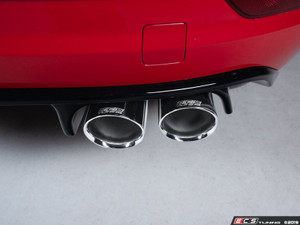

ECS 3.5" Chrome Swivel Tips (4)?
?
PRODUCT DEVELOPMENT
Our ECS Tuning Quad Exit AxleBack Exhaust and ABS?Rear Diffuser?were designed, engineered, tested and quality inspected by our Research and Development team in our Wadsworth, Ohio facility. We strive for the highest level of precision and quality through leadingedge product development technology including FARO laser scanning for reverse engineering and quality inspection, SolidWorks 3D CAD modeling, rapid prototyping utilizing our inhouse 3D printer, and rigorous long term product testing.?
?
