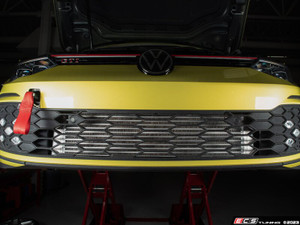

The ECS Tuning Front Mount Intercooler (FMIC) Kit boosts power and lowers intercooler outlet temps by maximizing core volume and more efficiently dispelling heat over the OEM sandwich-mounted intercooler. The factory intercooler is positioned between two hot heat exchangers, the A/C Condenser and Radiator, and suffers from an undersized and underperforming tube and fin core from the factory. Upgrading the OE-location intercooler is difficult for most hobbyists and is hidden within the core support. An alternative choice is our In-House Designed and Engineered FMIC Kit which relocates the charge cooler front and center, right behind your front bumper cover for maximum available airflow while moving it away from the hot heat exchangers inside the engine bay, all while adding an aggressive appearance to your turbocharged VW!
Our design features high quality cast aluminum end tanks with an integral flow divider on the inlet for even flow distribution, a massive 29.25 x 7 x 2.5 (512 in.³ volume) aluminum bar and plate core, which lends to an increase in volume of +9% over the OEM intercooler, for maximum heat dissipation, bolt-on powder-coated steel brackets, which require absolutely NO drilling or cutting, and 5-ply pre-molded silicone couplers with T-Bolt hose clamps. Our intercooler was in-house engineered to provide a bolt-on cooling solution for the VW MK8 GTI and Golf R market. Through our in-house evaluation on our ECS Shop MK8 Golf R, we measured an increase of +10 WHP @ 6,400 RPM and +2 WTQ @ 6,200 RPM along 80° F. lower intercooler outlet temperatures after 3 consecutive dyno pulls.
PART DESIGN
INTERCOOLER
3D CAD designed to allow the largest intercooler possible without permanent modifications (no cutting or drilling)
Aluminum Straight Vane Bar and Plate Core - 29.25 x 7 x 2.5 (512 in.³ internal core volume)
Raw Cast Aluminum End Tanks with smooth flowing internal inlet and outlet flow-paths
Cast 2.50" barbed connections keep hoses secured and minimizes the risk of hoses blowing off
Internal flow divider on intercooler inlet for even flow distribution between the intercooler core
End tanks are tig welded to the intercooler core and the complete assembly is pressure tested to 3.5 BAR at 0% leak down to ensure sealing capacity
Cast mounting features supply our bracketry with a rigid mounting point
MOUNTING BRACKET KIT
Our unique design to mount the intercooler makes this kit truly remarkable! By bolting our brackets to the lower crash beam bolts, absolutely no drilling into your core support or drilling into your beam is required! The beam does NOT need to be removed.
Made from rigid ? thick steel then powder-coated wrinkle-black for corrosion protection
Zinc-plated rivet nuts make for a simple bolt-on solution to our intercooler with our included stainless steel bolts and washers
A pre-welded tab on the driver's side bracket maintains a mounting point for the ambient air temperature sensor bracket.

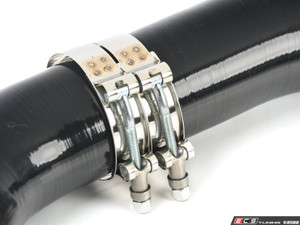

SILICONE COUPLERS
Pre-molded and held to tight tolerances to achieve the best flow possible while navigating the tight areas within the MK8's front end
Made from heavy-duty, 5-ply fiberglass reinforced silicone for burst resistance. Capable of handling 250° F. operating temperatures and over 45 PSI.
Smooth internal passageways and smooth bends keep airflow at peak for the greatest level of performance
KIT CONTENTS
ECS Front Mount Intercooler
ECS Direct-Fit Mounting Bracket Kit with Mounting Hardware
ECS Silicone Couplers with T-Bolt Hose Clamps
PERFORMANCE FEATURES
Dyno tested on our In-House Mustang Dyno on our shop 2022 MK8 Golf R 2.0T 6 speed manual, comparing OEM intercooler to ECS FMIC.
Vehicle Modifications: Unitronic Stage 1+ Octane Tune, ECS Valved 3.0" Cat-Back Exhaust, ECS Kohlefaser Luft-Technik Intake
+10 WHP @ 6,400 RPM and +2 WTQ @ 6,200 RPM
80° Fahrenheit lower intercooler outlet temperature drop over 3 consecutive dyno pulls
PRODUCT DEVELOPMENT
Our ECS Front Mount Intercooler Kit was designed, engineered, tested and quality inspected by our Research and Development team in our Wadsworth, Ohio facility. We strive for the highest level of precision and quality through leading-edge product development technology including FARO laser scanning for reverse engineering and quality inspection, SolidWorks 3D CAD modeling, rapid prototyping utilizing our in-house 3D printer, and rigorous long term product testing.
INSTALLATION AND SUPPORT
No cutting, drilling or any other permanent modifications are required for intended fitment.
