All too often OEM components sacrifice performance in an effort to appeal to a wide variety of customers. While an enthusiast typically wants better boost response and more power, all while hearing the turbocharger breathe, a nonenthusiast may give up these characteristics for a quieter ride. Give your 1.8T/2.0T MQB Gen3 equipped VW MK7 Golf, Alltrack, GTI, Golf R, Atlas, Tiguan?or Audi 8v A3/S3, MK3 TT the performance it deserves and engage with your car for a more enjoyable driving experience!?

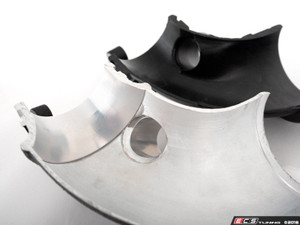

In the case of the factory turbo inlet pipe, mounted between the compressor housing and air intake hose, its purpose is to channel air from the inlet hose into the turbocharger inlet, all while?reducing engine bay acoustics and sacrificing quality materials in favor of cheap?molded plastic material. With the ECS MQB Big Bore Turbo Inlet Pipe, the factory inlet pipe?is removed and replaced with our straightthrough, high flow 6061T6 aluminum inlet.?This increases available airflow and turbocharger working sound by creating a larger, smoother transition between the turbo inlet hose and compressor housing inlet.?
?
PART DESIGN

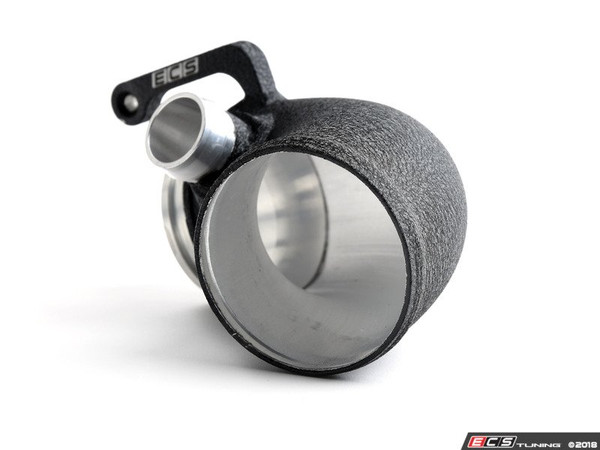

Inlet Elbow is made from CNC bent?70mm OD, thin wall 6061T6 aluminum for maximum airflow capacity and is designed to work in combination with OEM / OELocation Turbo Inlet Hoses. It features a bead rolled inlet to keep your inlet hose secured during engine movement while under load.?

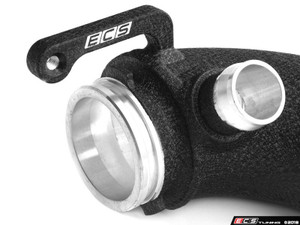

Compressor Inlet Flange is made from billet machined 6061T6 aluminum and features a bellmouth inlet design for smooth air entry into the compressor housing and is TIG welded to the inlet elbow tube. The CNC inlet flange also features OEM retaining grooves, it reuses the OEM sealing Oring for a perfect fit and seal, and is masked off prior to powdercoating for precision fitment within the compressor housing.?

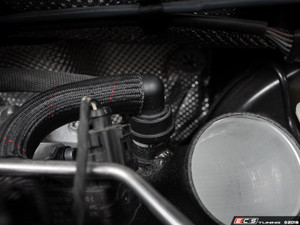

CNCMachined PCV adapter is TIG welded to the inlet tube and is compatible with both "clip" and "constantpressure"?style OEM PCV hose attachments as well as ECS 10AN PCV Hose Adapters. It too is masked off before powdercoating for a more precise fitment, unlike other options on the market.?
Locating Arm is made from 6061T6 aluminum and is TIG welded in position to retain compatibility with the OEM locating fastener and its mounting location.?
A durable Wrinkle Black Powdercoat finish keeps our Inlet Pipe looking great and maintains a?stealthlike appearance once installed?
?
PERFORMANCE FEATURES
Our ECS Big Bore Turbo Inlet Pipe was tested inhouse on our Research & Development VW MK7 GTI with a Cobb Stage 3 AP Tune, Milltek 3.0" Turbo Back Exhaust System, ECS Intercooler Charge Pipes and an ECS Air Intake System and produced excellent midrange power increases of +10 WHP and +15 ft/lbs of wheel torque between 3,700 RPM 4,200 RPM. We also observed an increase of +4.4 WHP and +6.7 ft/lbs of wheel torque at peak power output, maintaining that an overall?increase in power throughout the entire RPM band is achievable with our simple bolt on upgrade!?
With the larger and smoother inlet, torque is brought on sooner and is maintained into the upper RPM power band.?
A slight increase in turbocharger working sound can also be observed on vehicles with some aftermarket air intakes.?
?
PRODUCT DEVELOPMENT
Our ECS Big Bore Turbo Inlet Pipe was designed, engineered, tested and quality inspected by our Research and Development team in our Wadsworth, Ohio facility. We strive for the highest level of precision and quality through leading edge product development technology including FARO laser scanning for reverse engineering and quality inspection, SolidWorks 3D CAD modelling, rapid prototyping utilizing our inhouse 3D printer, and rigorous long term product testing.
?
INSTALLATION AND SUPPORT

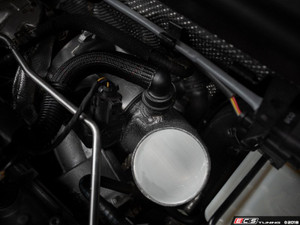

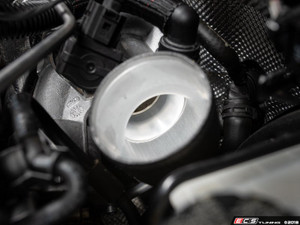

Our ECS?Big Bore Turbo Inlet Pipe is a directfitment OE upgrade for the factory?5QM129635 Turbo Inlet Pipe. Unlike other brands, ours reuses the OEM Oring for easier installation, along with our precision machined mating components, installation a breeze.?
Looking for installation tips? Look no further, we put together a full installation tutorial from start to finish including how to remove your OEM parts in detail! Head over to our YouTube channel for the full video @ ECS Tuning and check out our Installation PDF under the INSTALLATION Tab for more information.
?
*Replacement OEM sealing?Oring sold separately ES2806664 or you can reuse your factory seal.?
*Replacement mounting bolt sold separately ES3183332?or you can reuse your factory bolt.?

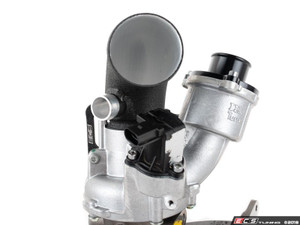

**PLEASE NOTE:** ECS Turbo Muffler Delete and IS38 Turbocharger are shown for demonstration purposes only and are NOT included in the purchase of this item. However, these are available for separate purchase.?
