Oil Pump Service Kit - ES2804849

When it comes time to address the faulty oil pump in your vehicle, this kit will assist you in saving time finding all of the necessary parts to replace along with the pump.  This kit has been assembled by ECS Tuning in order to help you get your vehicle back on the road as soon as possible.

Kit includes:

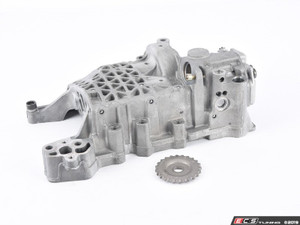

• Balance Shaft Deleted Oil Pump
• Oil Pickup Tube
• Oil Pump Drive Chain
• Oil Pump Chain Tensioner

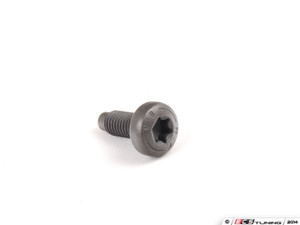

• Oil Pump Securing Bolts
• Oil Pump Drive Sprocket Bolt
• Turbocharger Oil Return Line Gasket
• Oil Pan Sealant (80mL)
• Genuine Engine Oil (5 Quarts of 5W-40)
• Genuine Oil Filter
• Genuine Oil Drain Plug
• Engine Cradle Gasket (Between Oil Pump Assembly and Engine Block)

The 2.0T FSI oil pump assembly with balance shaft delete service performed by iABED Industries is a unique product that allows users to retain their 2.0T FSI oiling system without the fear of having the balance shafts sieze causing catastrophic failure in the future.

This will work on all EA113 2.0T FSI engines, including the MK6 Golf R.

The process involves the following:

• Collection of good core
• Ultrasonic clean to remove oil residue and film
• CNC machine approximately 5lbs worth of steel shafts and gears
• Open oil galleys
• Ultrasonic clean to remove any metal debris inside oil galleys and remainder of oil pump housing
• Press in T6061 CNC machined plugs where shafts once sat
• Assembled unit for OEM fitment

IMPORTANT NOTICE WHICH APPLIES TO CORES & HANDLING TIME:

• Cores must have the oil pump pick up tube and both drive gears removed before shipping.
• We will not issue a core refund on oil pumps that have seized balance shafts or scored oil pump vanes.
• This is not done on a case by case basis. The core you send in will not be the oil pump you receive.
• Please do not remove your oil pump from your vehicle and send that in as a core. Unless the item is in stock at ECS , there will be a delay receiving an oil pump (read not the exact oil pump you sent in).

***CORE IS NOT TO BE RETURNED BACK TO ECS TUNING***
