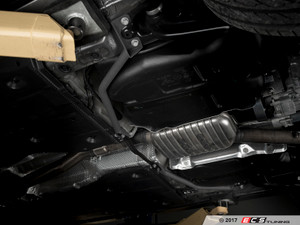

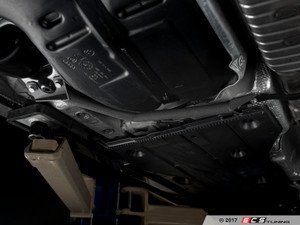

The ECS Tuning Rear Chassis Braces bridge the gap between the mounting points of the trailing arm pockets and brace the weak rear tunnel areas. These triangulated bolt-on bars help to increase structural rigidity of the floor and chassis area which limits body roll. Beautifully powder coated your choice of wrinkle red or wrinkle black to offer both good looks and durability.
PART DESIGN
Mandrel bent DOM steel professionally TIG welded to chassis adapter plates. Precision engineered to fit 4Motion and FWD models.
Powder coated for superior durability and corrosion resistance
Reuses the already-stout OE center-tunnel brace for exhaust clearance.
PERFORMANCE FEATURES
With the ECS Rear Chassis Braces in place, body roll is minimized. Our brace is a precision engineered structural component that ensures power is transferred properly and not lost through chassis flex, without any increase in NVH.
PRODUCT DEVELOPMENT
Our ECS Rear Chassis Brace Set was designed, engineered, tested and quality inspected by our Research and Development team in our Wadsworth, Ohio facility. We ensured the highest level of precision and quality is delivered throughout rigorous long term product testing and leading edge product development methods.
INSTALLATION AND SUPPORT

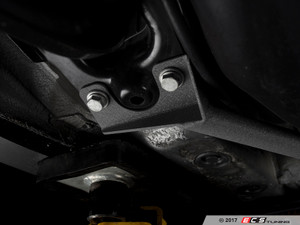

Installation is easy. Simply unbolt the trailing arm mounting bolts and rear tunnel nuts, and install the appropriate-side brace.
Trailing arm mounting bolts are recommended to be replaced every time they are loosened. Please see ES250674 - QTY 4, for replacements (QTY 4 services BOTH braces). Torque to 50 Nm +45°.
Center bar nuts are reusable. Torque to 20 Nm.
