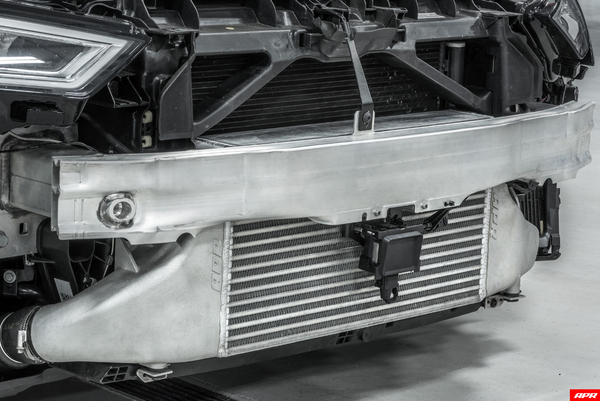

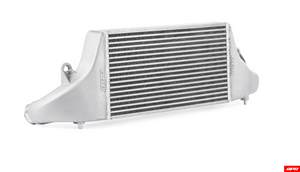

The APR RS3 Front Mount Intercooler System

The APR Intercooler System is a massive front mounted upgrade that dramatically reduces intake air temperature (IAT), minimizes heat soak, and provides increased performance! The system is an easy to install, direct bolt-on design, that is recommended at every stage of performance.

Quick Facts:

• Dramatically lowers intake air temp (IAT)
  Increases HP while minimizing power-robbing heat soak!
  Dynoed 26 AWHP over to the factory system (STG 1 93)!
  Effective cooling for more than double factory horsepower levels!
• Massive frontal surface area and core volume

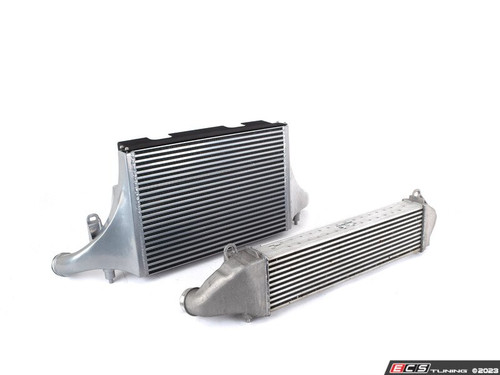

  6.38" x 25.33" x 3.16" - 161.6 in² frnt. & 510.67 in³ volume - OEM
  11.7" x 22.00" x 3.50" - 257.4 in² frnt. & 900.90 in³ volume - APR
• Highly effective core design
  Bar-and-plate core with staggered and louvered fins.
  Rigorous testing determined core style, fin density, and size.
  Low pressure drop + highly effective cooling = high performance!
• Smooth cast end tanks
  Engineered for low turbulence/restriction and maximum flow.
  Organically shaped to promote airflow across entire core.
  Pressure tested to prevent power robbing boost leaks.
• Easy to install
  Simple plug-and-play design with no trimming or drilling necessary!
• Designed by engineers with lasers
  With the best equipment and smartest engineers, it just works!

The temperature difference between the stock and APR intercooler directly translates to more horsepower. Comparing best vs best, worst vs worse, and average vs average dynos from both systems, the APR Intercooler laid down 26 AWHP over stock in every scenario. This is easily one of the best dollar-per-horsepower hardware modifications one can make on this platform and highly recommended for anyone at any stage!
