Sale
Many people don't think about replacing the sway bar end link when they lower their car, usually because they are able to make the OE length line up at some point. Even though this may connect it doesn't mean your suspension geometry is positioned correctly to maintain the intended performance. When you lower your vehicle the sway bar end links need to increase in length ?since the shock mounting point stays in place as the body drops lower. When using the OE end link on a lowered vehicle it pulls the sway bar up causing extra load and binding often creating suspension noise, early end link failure, and undesirable handling characteristics.

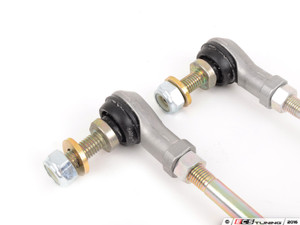

Each sway bar link has a 10mm diameter mounting pin/stud, which is the typical factory/stock size for a universal fitment.?These end links offer the quiet operation and long life of "stock" BMW end links, but with the strength and adjust-ability of rod-end style sway bar links. These sway bar links can be used on a wide variety of BMWs and aftermarket BMW suspensions. When measuring, please consider that the length ranges of our Custom Adjustable end links are measured from the center to center on the end link mounting stud / pin, as shown in the?diagram.
Note for?E9X M3 / F8X M2, M3, M4: The unique mounting on the M?strut requires a set of our adapter seats. You can add them with your links from the menu below.
Available options:
155.00mm - 170.00mm6.10" - 6.69"
170.00mm - 185.00mm6.69" - 7.28"
180.00mm - 195.00mm7.08" - 7.67"
190.00mm - 205.00mm7.48" - 8.07"
207.00mm - 222.00mm8.15" - 8.74"
220.00mm - 235.00mm8.66" - 9.25"
240.00mm - 255.00mm9.45" - 10.04"
250.00mm - 265.00mm9.84" - 10.43"
261.00mm - 276.00mm10.28" - 10.87"
280.00mm - 295.00mm11.02" - 11.61"
290.00mm - 305.00mm11.42" - 12.00"
320.00mm - 335.00mm12.59" - 13.19"
330.00mm - 345.00mm12.99" - 13.58"
362.00mm - 377.00mm14.25" - 14.84"
370.00mm - 385.00mm14.57" - 15.16"
381.00mm - 396.00mm15.00" - 15.60"
389.00mm - 404.00mm15.31" - 15.91"
