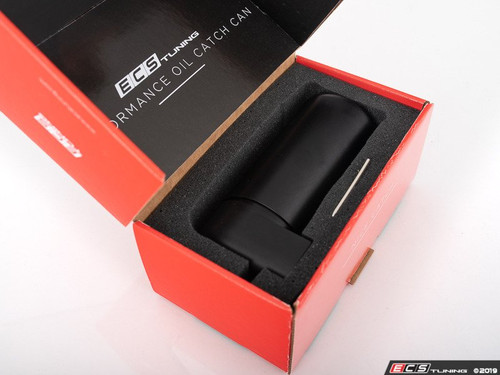

Universal ECS Tuning Baffled Oil Catch Can Kit (8oz)

Modern day emission?regulations require the use of a closed PCV / Breather system to recirculate combustion blowby gases for cleaner operation and to reduce greenhouse gases. However, due to inefficient capturing of oil particles within the air charge, a dense amount of oil vapor is allowed to be ingested within the intake tract causing deposits of carbon buildup at the intake ports, back of intake valves and oil deposits within the intake plumbing. All will eventually lead to poor performance, reduced fuel economy and a decreasing?octane rating.?

ECS Tuning now has the solution with our ECS?Baffled,?Recirculating?Oil Catch Can Kit. In house engineered, our catch can is designed to collect toxic blowby gasses, reduce carbon build up?and reduce concentrations of acids, oxidants and water within the engine oil.

Kit Contents:

• 8oz Recirculating Baffled Oil Catch Can
• 10AN ORB to 3/4" Hose Adapter Fittings QTY 2
• Universal Mounting Bracket Kit (3pcs w/ hardware)
• Universal Catch Can Drain System?

CATCH CAN SPECS:

• Height w/out dipstick: 6?
• Height w/ dipstick: 6.25?
• Width: 2.5?
• Depth: 2.875?

Key benefits of the ECS Baffled Oil Catch Can:

• Highly Efficient Oil Separator:
  • Strategically positioned 4?chamber?baffle system maximizes oil / air separation?
  • Engineered to create multiple changes in the direction of airflow within the separator to cause oil droplets to fall out of suspension before exiting the catch can
  • Closed /?recirculated design reduces oil ingestion and promotes?cleaner?emissions and odorless operation
  • 6061T6 billet machined body, anodized black for lasting protection and appearance
• Integrated Dipstick:
  • Knurled and black anodized oil dipstick makes?inspecting oil?volume of reservoir clean and simple
  • Sealed with a preinstalled viton ORing?
• Reservoir
  • Available in either 6oz or 8oz capacity to suit your space requirements
  • Includes 1/4" NPT drain plug fitting?
    • Upgrade to our inline drain valve kit for easy servicing ?ES3698456
  • Easily unthreads from the oil separator for?cleaning?
  • 6061T6 billet machined body, anodized black for lasting protection and appearance
• Serviceable:?
  • Includes 2.5mm allen key to remove baffle plates for cleaning
  • 1/4" hex drive drain plug allows easy emptying of catch can contents (hex key sold separately)?
  • Available Installation Instructions makes cleaning and care a breeze
• Easy / Customizable Installation
  • When combined with the ECS Universal Bracket Kit (ES2918376), installation is simplified with several mounting configurations
  • 360? Rotation for an infinitely adjustable mounting location when used with our ECS Universal Bracket Kit
  • Machined 10AN ORB (ORing Boss) fittings for leakfree fitting connections (fittings sold separately ?ES2986666)?
    • Reversible baffle plates allow inlet and outlet locations to be reversed if needed

?

CATCH CAN FITTING SPECS:

• 10AN ORing Boss fitting allows you to plumb your ECS Tuning Catch Can to a 3/4" ID hose for a simple plumbing solution for a custom install.?
• A preinstalled Viton Oring provides a leak proof seal that is resilient against oil and fuel for long term durability.
• The 3/4" nipple is barbed to maintain hose position which helps prevent the hose from backing off.

?

CATCH CAN BRACKET SPECS:

• Our three piece bracket kit includes two options for securing the catch can. Choose from either a flat parallel mounting plate or a bent 90? mounting plate to give you 360? rotation for an infinitely adjustable mounting location.
• We've even included a riser bracket if you need to extent the mounting post to another location.?
• The stainless steel hardware will help facilitate the install with the included hex bolts, nuts and washers.?

?

CATCH CAN DRAIN SYSTEM SPECS:

• The ECS Tuning Universal Catch Can Drain System?includes a comprehensive assortment of parts to make emptying your ECS Catch Can simple, without having to remove the catch can from its mounting bracket.?
• This kit includes the following:
  • QTY 1 1/4" Plastic drain valve
  • QTY 2 Spring clamps?
  • QTY 1 1/4" 90? degree barbed?1/4" NPT fitting
  • QTY 1? 1/4" Straight barbed 1/4" NPT fitting
  • QTY 1 36"?section of hose
  • QTY 2? Stainless steel worm drive hose clamps
  • QTY 3 Cable ties

?

**PLEASE NOTE:** Hoses and exact fittings to your engine are NOT included.?
