X34 SüperDüper Insuction Bundle, B9/B9.5 Audi S4/S5 3.0 TFSI

034Motorsport's X34 Cold Air Intake System delivers improved power, sound, and acceleration to B9 Audi S4/S5 owners in a clean OEM+ package.

X34 SüPERDüPER INSUCTION BUNDLE:

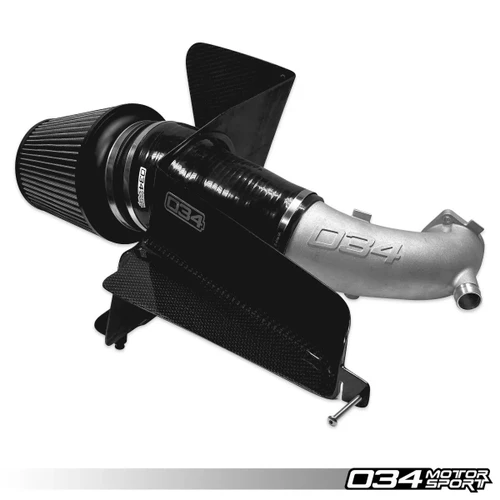

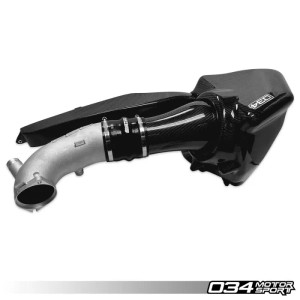

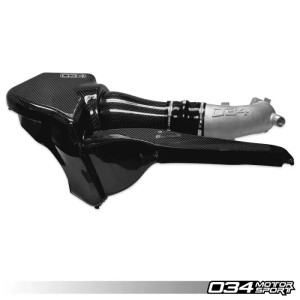

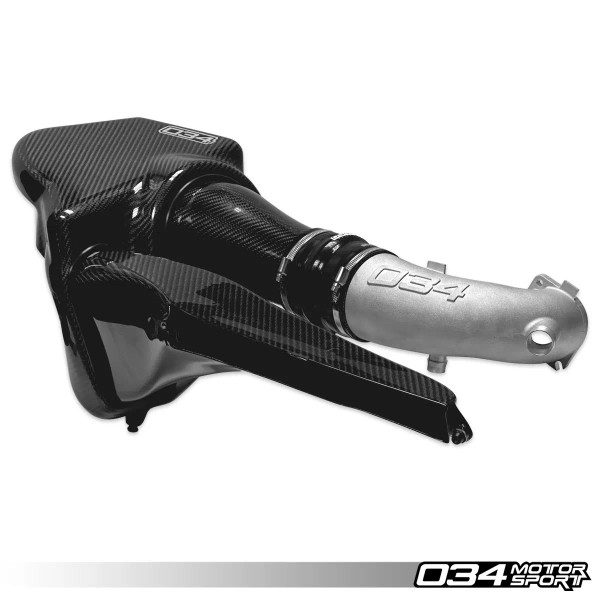

The 034Motorsport SüperDüper Turbo Inlet Pipe paired with the X34 Carbon Fiber Intake System is an essential upgrade to optimize power by eliminating a critical flow restriction in the intake tract when running the Factory Turbocharger or Stage 3 Hybrid Turbochargers with accompanying tuning for the most performance possible! Included with the SüperDüper Induction Bundle is an even larger CFD-optimized carbon fiber tube to properly mate the X34 Carbon Fiber Intake System and SüperDüper Turbo Inlet Pipe. The 034Motorsport SüperDüper Turbo Inlet Pipe is designed to maximize performance for Stage 3 Hybrid Turbo Tuning Software. The CNC machined edge retains the silicone hose securely to the turbo inlet pipe. The final touch is an embossed 034 logo to show unsuspecting car show attendees that you value substantive modifications on your 3.0 T-powered Audi.

SüPERDüPER TURBO INLET FEATURES:

• Cast from A356 Aluminum
• Compressor Inlet Flange Adapter Machined for Smooth Airflow Into Compressor Housing
• CNC Machined 6061-T6 Aluminum Turbo Inlet Adapter to Match Turbo Inlet for Maximum Airflow
• Optional Adapter Rings Available
• Increased Flow Over Factory Turbo Inlet
• CNC Machined
  • Edge Retains Intake Coupler Securely
  • Retain OE PCV Hose
  • To Retain Factory Wiring Harness Retention Clips
• Proven Power/Torque, and Airflow Gains
• Slotted Lower Turbo Inlet Bolt for Easy Installation
• Direct Bolt-on Installation.

Significant effort went into developing this comprehensive performance intake solution for the turbocharged 3.0 TFSI engine found in the latest generation B9 Audi S4/S5. Subsequently, the X34 Cold Air Intake System offers discerning enthusiasts measurable increases in horsepower and torque, sporty induction and turbocharger sounds, and a beautiful carbon fiber airbox and inlet pipe design.

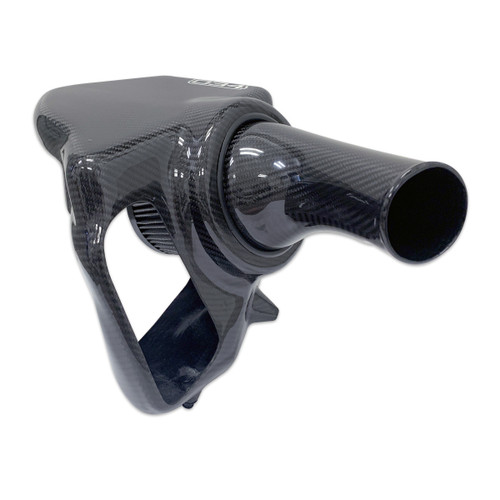

Throughout the development process, multiple designs were modeled, prototyped, and tested—all to ensure that the X34 Cold Air Intake System delivers measurable performance benefits and superb fitment. The result is a partially enclosed airbox that uses the factory fresh air inlet duct and heat shield while housing a massive 5" inlet conical air filter and a matching CFD-optimized carbon fiber filter tube.

X34 CARBON FIBER COLD AIR INTAKE SYSTEM FEATURES:

• Developed In-House by 034Motorsport's Engineering Team
• Fits Both Left and Right Hand Drive Configurations
• High-Quality Carbon Fiber Airbox and Filter Tube Construction
• High-Gloss Epoxy Finish
• OEM+ Fit and Finish
• Dyno-Proven Horsepower Torque Gains
• Improved Airflow from Factory Airbox and Intake Tube
• Enhanced Engine Induction Sounds
• Improved Throttle Response
• Massive 5" Inlet Conical Pleated Cotton Air Filter
• Large-diameter CFD-Optimized Carbon Fiber Filter Tube
• Reduced Intake Air Temperature
• Securely Installs Using Factory Mounting Grommets
• Simple, Straightforward Installation Instructions

DYNO-PROVEN PERFORMANCE GAINS:

The X34 Carbon Fiber Cold Air Intake System for B9 Audi S4/S5 was engineered with performance in mind and is a free-flowing replacement for the factory airbox and turbocharger inlet hose. As the development of this intake progressed, the X34 Cold Air Intake System yielded a measurable reduction in pressure drop at the turbo inlet compared to the factory airbox, with a corresponding increase in horsepower and torque throughout the powerband.

PEAK HORSEPOWER AND TORQUE:

• Stock Intake: 401 Horsepower / 424 Foot-Pounds of Torque
• X34 Intake: 412 Horsepower / 425 Foot-Pounds of Torque

PEAK GAINS IN HORSEPOWER AND TORQUE:

• Peak Horsepower Gain: 19 HP @ 4,950 RPM
• Peak Torque Gain: 20 FT-LBS @ 4,950 RPM

PRESSURE DROP REDUCTION:

• Stock Intake: Peak Pressure Drop of 2.22 PSI at 6,500 RPM
• X34 Intake: Peak Pressure Drop of 1.64 PSI at 6,500 RPM

APPLICATION GUIDE:

• 2018 - Present Audi S4 (B9) 3.0 TFSI
• 2018 - Present Audi S5 (B9) 3.0 TFSI

WHAT'S INCLUDED:

• X34 Carbon Fiber Air Box
• X34 Carbon Fiber Inlet Pipe
• X34 Silicone Hump Hose 2.75"
• 034Motorsport 5" Inlet Air Filter
• Authentic 034 X34 Hologram Decal
• Button-Head Cap Screws M5 x 0.8 x 25mm (x3)
• Nylon Locking Nuts M5 x 0.8 (x3)
• Worm Drive Hose Clamps M60x80 (x2)

*Emissions Disclaimer: Not for use on emissions-controlled vehicles in California.*
