The factory MQB Gen3 plastic charge pipes and rubber couplers?were never designed to handle the stress and abuse of higher boost levels?much beyond stock. When combined with powerrobbing abrupt and?sharp bends,?inferior rubber material, and small diameter tubing,?it's easy to see why your intercooler pipes and couplers should be upgraded, even on stock vehicles.?
At ECS Tuning, we're proud to release our in house designed and engineered High Flow Turbo Outlet Pipe?Kit.?Each kit comes standard with a precision molded 5ply reinforced silicone outlet hose, a mandrel bent, bead rolled, powdercoated aluminum turbotointercooler pipe and?stainless steel?TBolt clamps for an easy, direct bolt on installation.?
Capable of withstanding greater heat and higher boost pressure than stock, you can expect to achieve greater reliability, less turbulence and less restriction thanks to the larger diameter charge path and smooth bends. Never worry about blowing couplers off our tubes?as each end is bead rolled and secured with a stainless steel Tbolt clamp over our 5ply reinforced silicone couplers.
?
PART DESIGN
Designed by our inhouse Engineering Team using FARO laser scanning and?3D CAD modeling
Completely redesigned turbo outlet pipe in silicone construction to fit within the tight spaces found on the MK7.5 GTI/Golf R?7Speed DSG (DQ381) platform?
Premolded 5ply reinforced silicone
Features a gradual taper from the turbo outlet pipe to the larger diameter ECS charge tube?
Available in a gloss black or red finish?
Lower charge tube made from 6063 aluminum?
CNCmandrel bent for the smoothest flow possible
Larger 60mm diameter tubing?
Features bead rolled ends to keep couplers from blowing off
?
KIT CONTENTS
Silicone Turbo Outlet Coupler
Aluminum Lower Charge Tube
Silicone Intercooler Inlet Elbow?
TBolt Hose Clamps QTY 4
?
PERFORMANCE FEATURES
Reduces turbulence and increases air flow capacity
Gains up to 10 WHP & 10 FTlbs of torque when using?our complete Charge Pipe Kit.

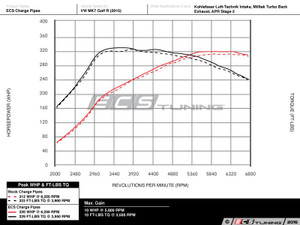

Dyno tested on?our inhouse Mustang AWD 500 SE in ground dyno. Tested on a VW MK7 Golf R with APR Stage 2 93 octane software, 3.0" Milltek turboback exhaust and ECS Kohlefaser LuftTechnik Air Intake with our High Flow Turbo Outlet Pipe Kit and Throttle Pipe Kit.
?
PRODUCT DEVELOPMENT
Our ECS High Flow Turbo Outlet Pipe Kit?was designed, engineered, tested and quality inspected by our Research and Development team in our Wadsworth, Ohio facility. We strive for the highest level of precision and quality through leadingedge product development technology including FARO laser scanning for reverse engineering and quality inspection, SolidWorks 3D CAD modeling, rapid prototyping utilizing our inhouse 3D printer, and rigorous long term product testing..?
?
INSTALLATION AND SUPPORT
Need installation tips? We put together a full installation tutorial from start to finish including how to remove your OEM parts in detail!?See our Installation PDF under the INSTALLATION Tab for more information.?
